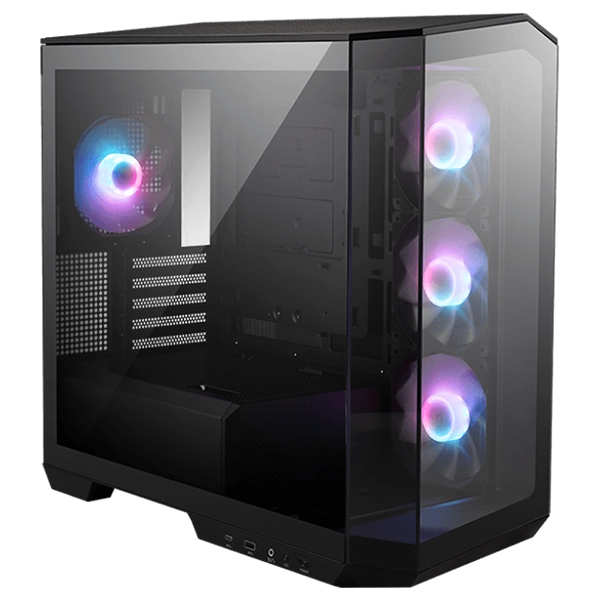

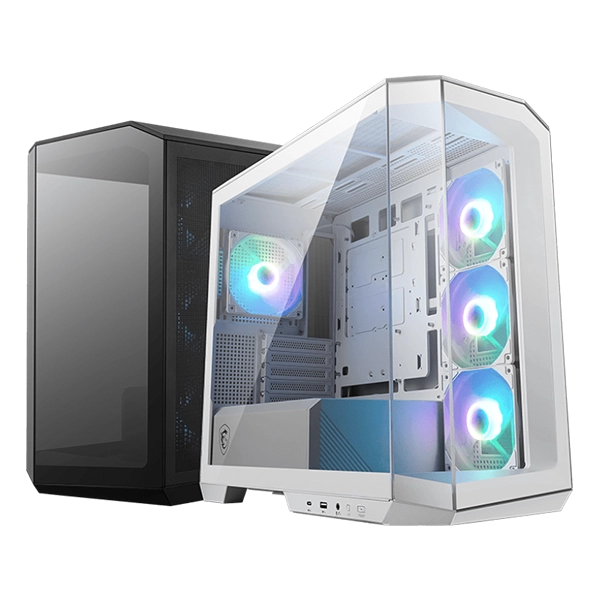

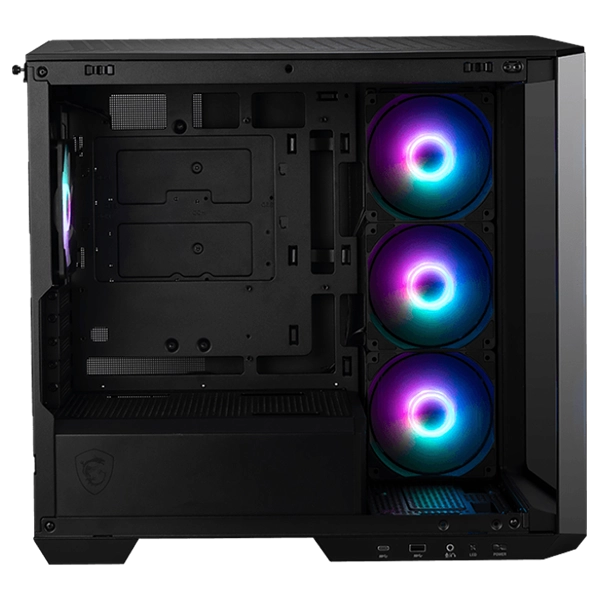

MSI MAG PANO M100R PZ CASE

MODEL NO: MSI MAG PANO M100R PZ CASE

Specifications:

ase Form Factor Micro- ATX Tower

Motherboard Form Factor

Support M-ATX(Back-connect supported) / ITX

I/O Ports

1 x USB 3.2 Gen 1 Type-A

1 x USB 3.2 Gen 2x2 Type-C

1 x Audio-Out / Mic-in

1 x LED Switch Button

1 x Power Button

Drive Mount Support

1 x 2.5”

1 x 2.5”/3.5” combo (up to 2 x 2.5” or 1 x

2.5”+ 1 x 3.5”)

Expansion Slots 5

Maximum GPU Length 390 mm / 15.35 inches *Support horizontal

installation only.

Maximum CPU Cooler Height 175 mm / 6.9 inches

Power Supply Support ATX

Maximum PSU Length 200 mm / 7.87 inches

Fan Size Support

Top: 3 x 120 mm / 2 x 140 mm

Front: NA

Rear: 1 x 120 mm / 1 x 140 mm

Side: 3 x 120 mm

Bottom: 1 x 120 mm

PSU Shroud: 2 x 120 mm

Pre-installed Fan Size Side: 3 x 120 mm

Rear: 1 x 120 mm

Pre-installed Fan Type Side: 3 x ARGB Fan (Reverse-blade)

Rear: 1 x ARGB Fan

Radiator Size Support

Top: 120 / 240 / 360 mm

Front: NA

Rear: 120 / 140 mm

Side: NA

Bottom: NA

Dimensions (DxWxH) 440 x 235 x 405 mm / 17.32 x 9.25 x 15.94

inches

Net Weight 8.66 kg

Gross Weight 11.29 kg
