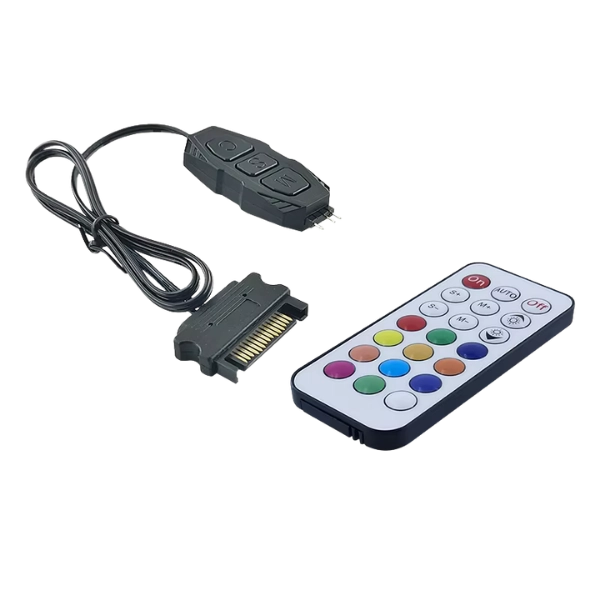

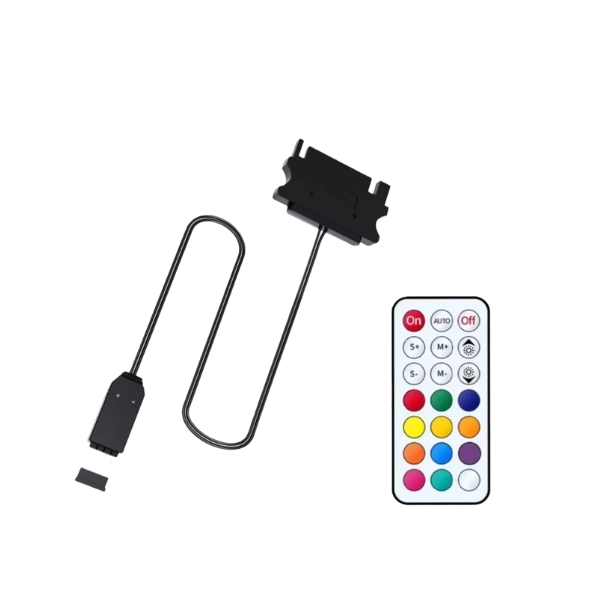

ARGB 5V 3PIN TO SATA RGB REMOTE MINI CONTROLLER HUB

✅ Specification:

Model Type: Mini ARGB Lighting Controller Hub

Connector Input (Power): 15-Pin SATA Power Connector (Direct PSU Connection)

Connector Output (ARGB): 3-Pin ARGB Header

Operating Voltage: 5V DC

Current Output: Max 2A – 3A (Supports up to 4–6 standard ARGB devices via daisy-chain/splitter)

Control Interface: RF Wireless Remote / In-Line Manual Mode Buttons

RF Remote Range: Approx. 5 - 10 Meters (360° Signal)

Supported Lighting Modes: Dynamic Color Cycles, Rainbow Wave, Breathing, Strobe, Static Colors, Speed Adjustments, Brightness Adjustments

Color: Black

Enclosure Material: ABS Plastic

CONNECTOR &!important; CABLE CONFIGURATION

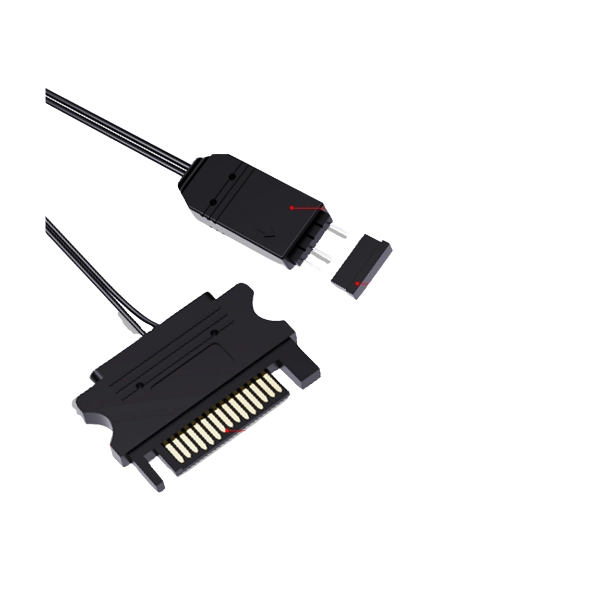

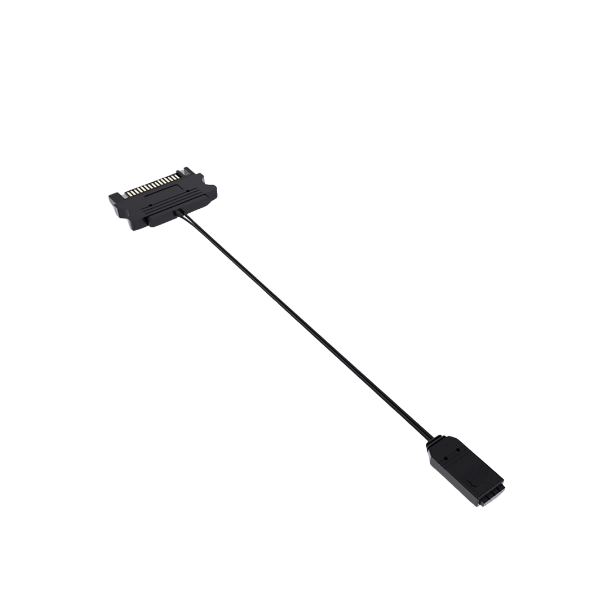

Power Connector: Standard 15-Pin Male SATA Power Cable

ARGB Output Connector: Standard 3-Pin Female ARGB Header with 3-Pin Male Passthrough/Pins

Cable Length: Approx. 15cm - 30cm

FUNCTIONALITY &!important; OPERATIONAL DETAILS

Manual Button Controls (On-Controller):

- M Button: Cycle through lighting modes / effects

- S Button: Adjust dynamic effect speed (Long press to switch brightness levels)

- C Button: Switch static color options (Long press to power off lights)

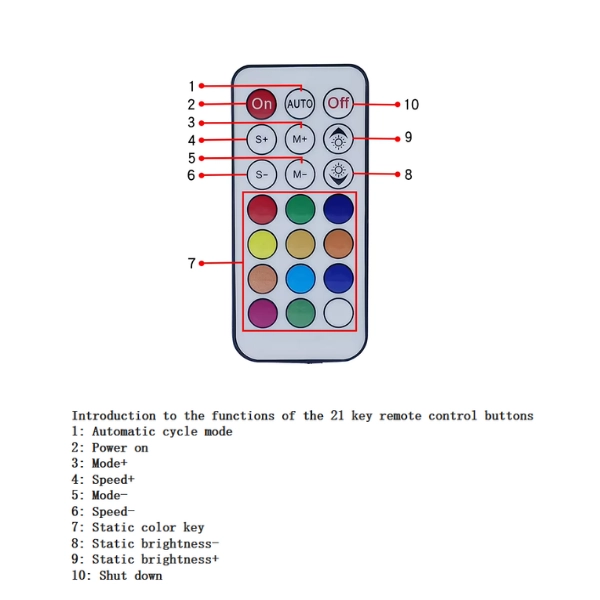

RF Remote Control Functions:

- ON/OFF Toggle

- Mode Up / Mode Down

- Speed Up / Speed Down

- Brightness Up / Brightness Down

- Direct Color Preset Buttons (Red, Green, Blue, White, etc.)

PHYSICAL SPECIFICATIONS

Controller Hub Dimensions (L x W x H): Approx. 45 x 18 x 9 mm

Weight: Approx. 15 g - 25 g

Mounting Type: Double-sided Adhesive / Magnetic Base (Model dependent)
