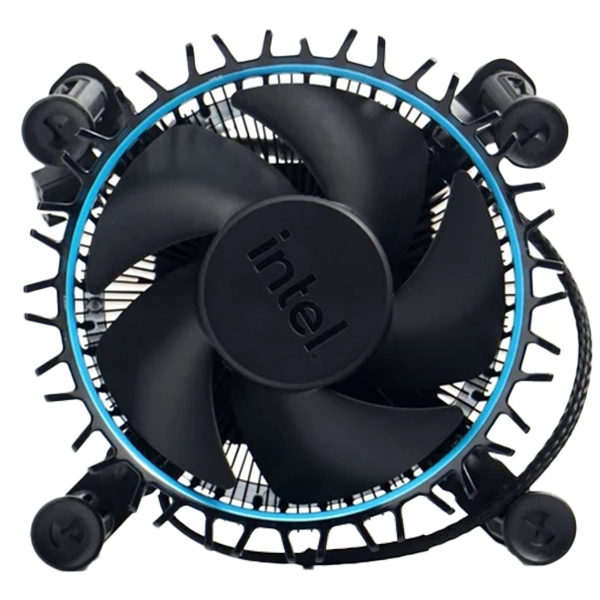

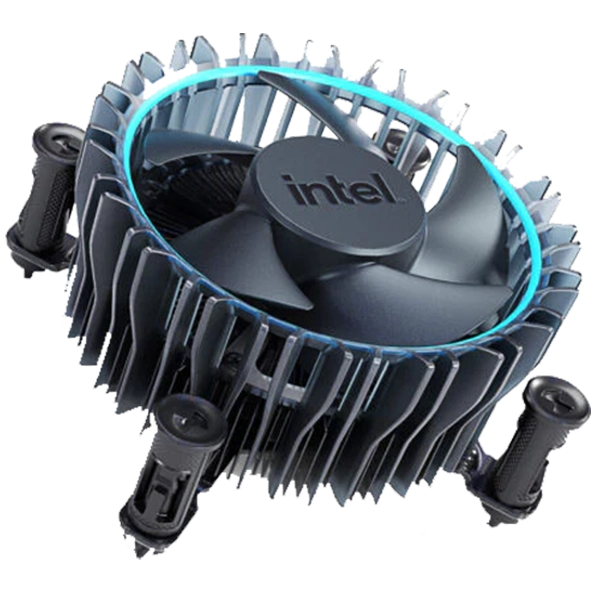

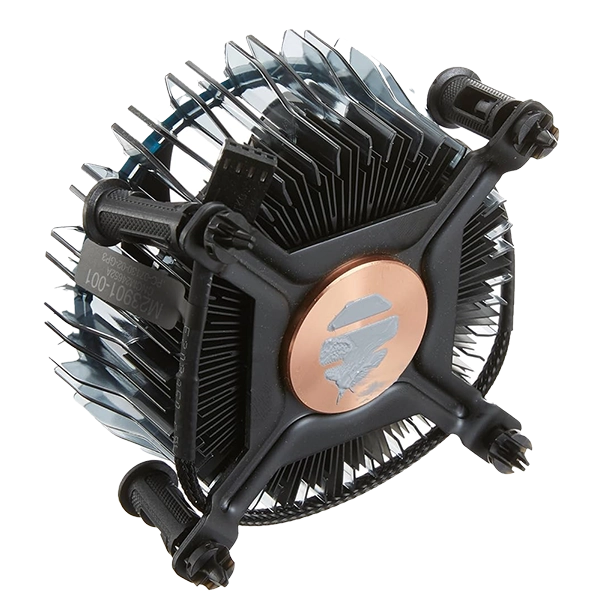

INTEL LAMINAR RM1 CPU AIR COOLER

MODEL NO: INTEL LAMINAR RM1 CPU AIR COOLER

(14th gen /13th gen/ 12th gen)

Overall Height Up to 47mm (top of fan to bottom of heatsink)

Overall Size Up to 100mm x 100mm

Mass Up to 350g

Sound Power Level 3.9 BA (2400 RPM, 40C inlet, 65W)!important; 4.6 BA (max RPM)

Sound Pressure Level 29 dBA (2400 RPM, 40C inlet, 65W)

TDP Support Up to 65W (12th Gen Intel® Core™ Desktop Processors)

Fan Type PWM controlled variable speed fan

Connector Type 4-pin

Operating Voltage 13.2V max, 12.0V rated, 10.8V min

Current (peak) Up to 400mA

Max RPM (+/- 5%) Up to 3150 RPM

Min RPM (+/- 20%) 600 RPM

Operating Temp 0 to 70C

Operating Humidity 85% relative humidity @ 55C

Fan Protection Locked-rotor/polarity protected

Sense Frequency 2 pulses/Rev, 12V pull-up with 10Kohm

PWM Frequency 25KHz +/- 5KHz

PWM Pull-up Voltage 5.25V max

PWM Duty Cycle Range 0–100%
