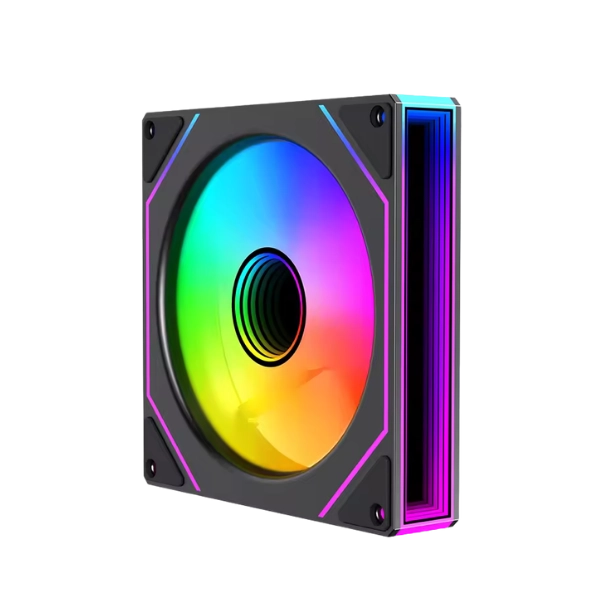

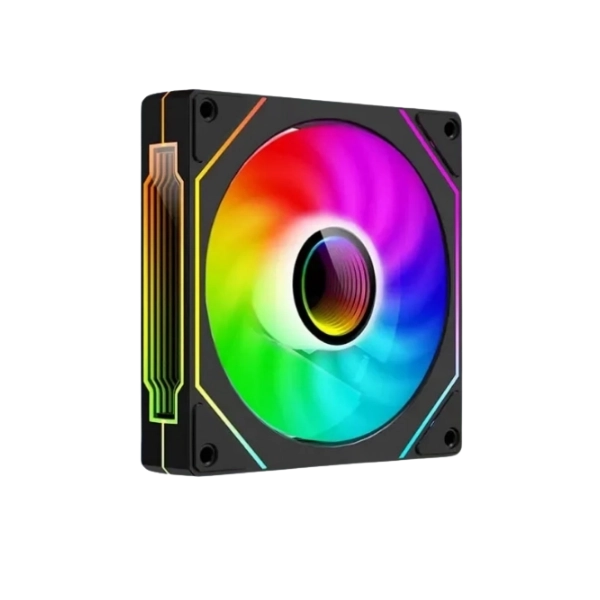

PRISM 6 PRO ARGB PWM REVERSE CASE FAN

✅ Specifications:

Model Name: Prism 6 Pro ARGB PWM (Reverse Blade)

Product Type: High-Performance Reverse-Airflow ARGB Case Fan

Fan Type: Reverse Airflow / Bottom &!important; Side Intake Blade Architecture

Color Options: Black

Fan Speed: 800 - 1800 RPM ± 10% (PWM Controlled)

Airflow: 58.5 CFM (Max)

Static Air Pressure: 2.1 mmH2O (Max)

Noise Level: 18.0 - 28.5 dBA

Bearing Type: Hydraulic Bearing (Fluid Dynamic Bearing)

Expected Lifespan (MTTF): 40,000 Hours

ELECTRICAL SPECIFICATIONS

Fan Rated Voltage: 12V DC

Fan Operating Voltage: 6V - 13.8V DC

Fan Rated Current: 0.15A - 0.25A

Power Consumption: Approx. 2.4W - 3.0W

LED Rated Voltage: 5V DC

LED Rated Current: 0.45A - 0.60A

LED Type: Addressable RGB (3-Pin 5V ARGB LEDs)

CONNECTIVITY &!important; CABLE CONFIGURATION

Fan Power Connector: 4-Pin PWM Connector (Supports Daisy-Chain Passthrough)

Lighting Connector: 3-Pin 5V ARGB Connector (Male/Female Passthrough Header)

Cable Length: Approx. 500mm (Fully Sleeved / Flat Black Ribbon)

LIGHTING &!important; DESIGN FEATURES

Illumination Style: Infinity Mirror Center Hub + Dual Outer Ring ARGB Light Bands

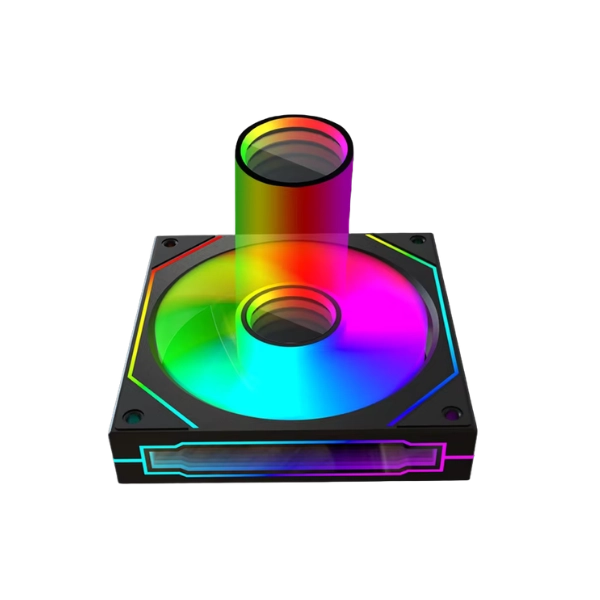

Blade Orientation: Reverse Blades (Inverted airflow direction: Air draws in from the rear frame struts and exhausts out through the front hub face)

Aesthetic Advantage: Displays the clean front hub face, infinity mirror, and unblocked fan blades toward the glass panel while acting as an intake fan.

Lighting Compatibility: ASUS Aura Sync, MSI Mystic Light Sync, Gigabyte RGB Fusion, ASRock Polychrome, and 5V 3-Pin ARGB Controllers

PHYSICAL SPECIFICATIONS

Fan Dimensions (L x W x H): 120 x 120 x 25 mm

Weight: Approx. 140g - 160g

Anti-Vibration Pads: 8x Pre-Applied Rubber Corner Dampers
