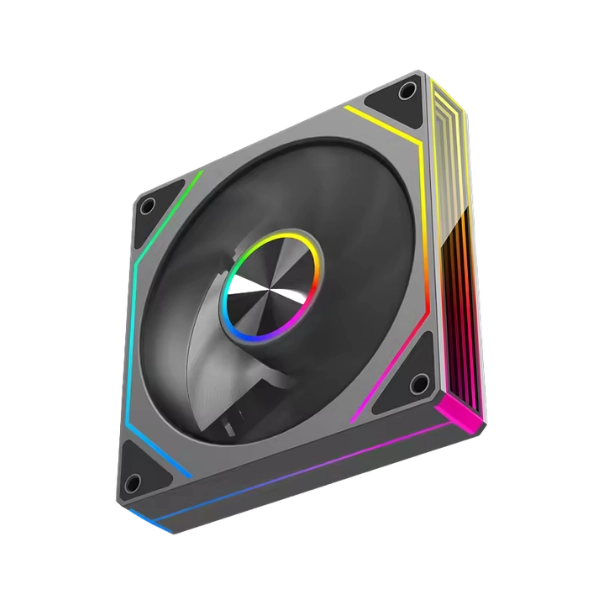

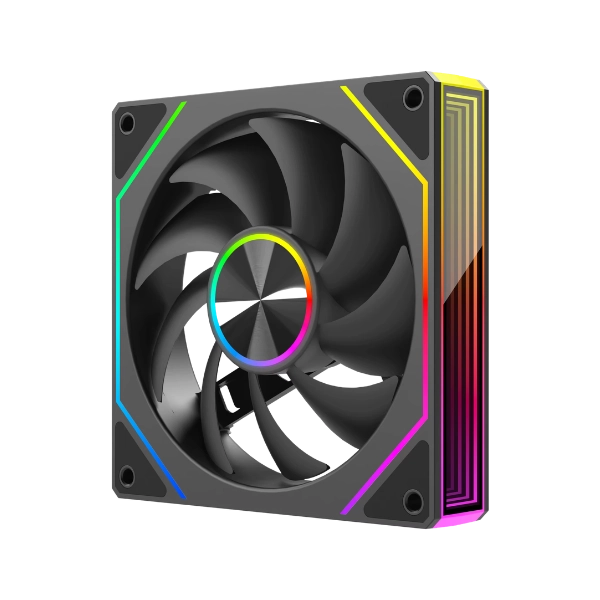

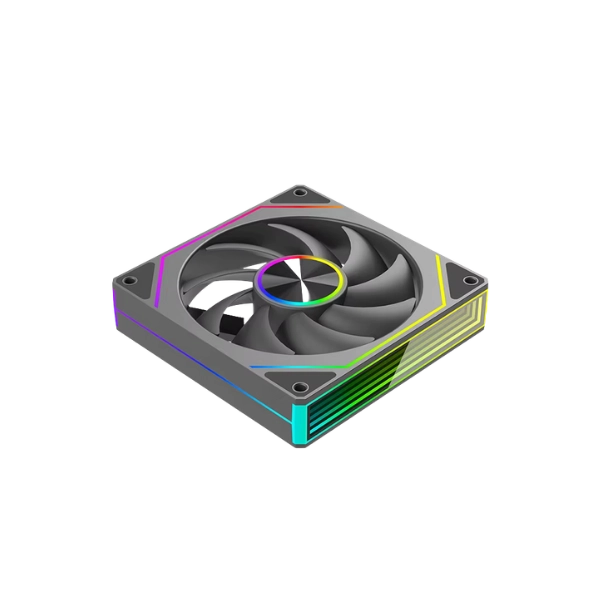

PRISM 7 PRO ARGB PWM FORWARD CASE FAN

✅ Specification:

Model Name: Prism 7 Pro ARGB PWM (Forward Blade)

Product Type: High-Performance ARGB Cooling Fan

Fan Type: Forward Airflow / Standard Intake-Exhaust Blade Architecture

Color Options: Black

Fan Speed: 800 - 1800 RPM ± 10% (PWM Controlled)

Airflow: 61.5 CFM (Max)

Static Air Pressure: 2.25 mmH2O (Max)

Noise Level: 18.5 - 29.0 dBA

Bearing Type: Hydraulic Bearing (Fluid Dynamic Bearing)

Expected Lifespan (MTTF): 40,000 Hours

ELECTRICAL SPECIFICATIONS

Fan Rated Voltage: 12V DC

Fan Operating Voltage: 6V - 13.8V DC

Fan Rated Current: 0.18A - 0.28A

Power Consumption: Approx. 2.8W - 3.4W

LED Rated Voltage: 5V DC

LED Rated Current: 0.50A - 0.65A

LED Type: Addressable RGB (3-Pin 5V ARGB High-Density LEDs)

CONNECTIVITY &!important; CABLE CONFIGURATION

Fan Power Connector: 4-Pin PWM Connector (Supports Daisy-Chain Passthrough)

Lighting Connector: 3-Pin 5V ARGB Connector (Male/Female Passthrough Header)

Cable Length: Approx. 500mm (Flat Black / White Ribbon Cable)

LIGHTING &!important; DESIGN FEATURES

Illumination Style: Enhanced 3D Infinity Mirror Center Hub + Dual Outer Frame Lighting Rings + Side Mirror Strip

Blade Orientation: Forward Blades (Standard airflow direction: Air draws in through the front hub face and exhausts out past the rear frame struts)

Lighting Compatibility: ASUS Aura Sync, MSI Mystic Light Sync, Gigabyte RGB Fusion, ASRock Polychrome, and standard 5V 3-Pin ARGB mini controllers

PHYSICAL SPECIFICATIONS

Fan Dimensions (L x W x H): 120 x 120 x 25 mm

Weight: Approx. 150g - 170g

Anti-Vibration Pads: 8x Pre-Applied Rubber Corner Dampers
