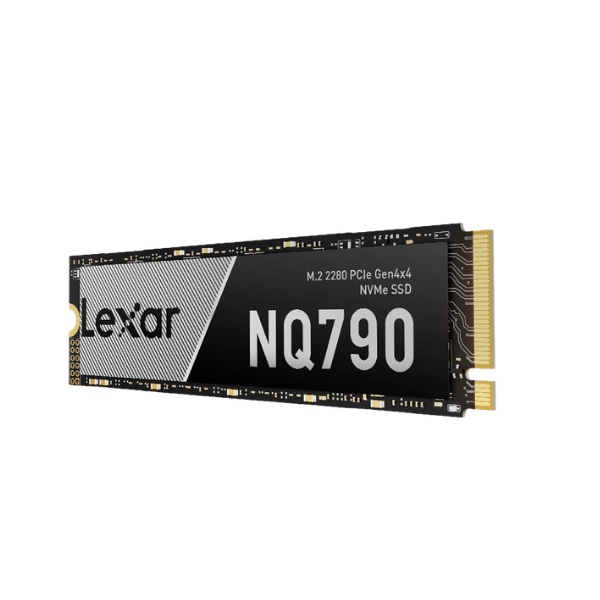

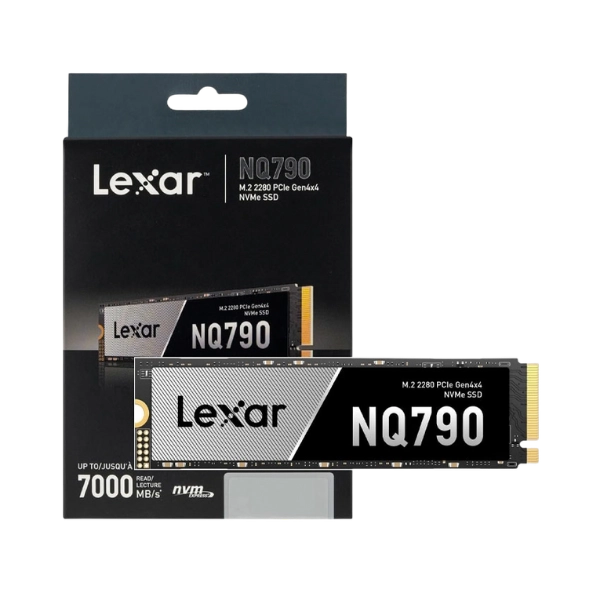

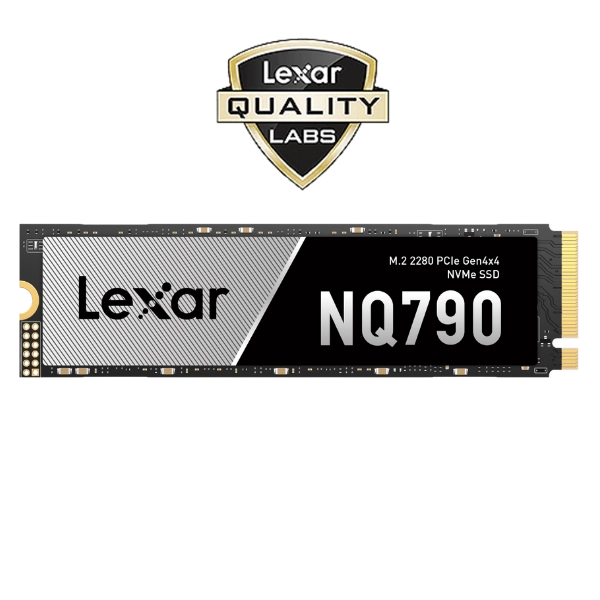

Lexar NQ790 1TB PCIe 4.0 NVMe M.2 SSD

Model Name: Lexar NQ790

• Part Number (P/N): LNQ790X001T-RNNNG

• Capacity: 1TB

• Form Factor: M.2 2280

• Interface: PCIe Gen4 x4

• NVMe Protocol: NVMe 2.0 / 1.4

• Flash Memory Type: 3D NAND Flash

• NAND Architecture: High-Density 3D TLC / QLC NAND

• Controller: High-Performance Multi-Channel PCIe 4.0 Controller

• DRAM Configuration: DRAM-less (Host Memory Buffer / HMB Supported)

• Warranty / Endurance: 5-Year Limited Warranty / Up to 600 TBW (Total Bytes Written)

PERFORMANCE SPECIFICATIONS

• Sequential Read Speed: Up to 7,000 MB/s

• Sequential Write Speed: Up to 6,000 MB/s

• Random Read (4KB): Up to 800,000 IOPS

• Random Write (4KB): Up to 600,000 IOPS

• MTBF (Mean Time Between Failures): 1,500,000 Hours

• POWER &!important; THERMAL SPECIFICATIONS

• Power Consumption (Active): Up to 5.0W

• Power Consumption (Idle): <!important; 50mW

• Thermal Management: Integrated Dynamic Thermal Guard / Power Management Tech

• Operating Temperature: 0°C to 70°C

• Non-Operating Temperature: -40°C to 85°C

• Shock Resistance: 1500G, duration 0.5ms, Half Sine Wave

• Vibration Resistance: 10~2000Hz, 1.5mm, 20G, 1 Oct/min

• PHYSICAL SPECIFICATIONS

• Dimensions (L x W x H): 80 x 22 x 2.45 mm

• Weight: Approx. 6 g

• COMPATIBILITY &!important; SYSTEM REQUIREMENTS

• Motherboard Slot: M.2 Socket 3 (M Key), 2280 Form Factor

• Console Compatibility: PlayStation 5 (PS5) Storage Expansion Ready

• Supported Platforms: Windows 10 / 11, Linux, macOS (via enclosure)Xboxws and macOS operating systems
