PXN V3 PRO BLACK RACING STEERING WHEEL PXN-V3PRO

✅ Specification:

• Model Name: PXN V3 Pro

• Product Type: Multi-Platform Gaming Steering Wheel &!important; Pedal Set

• Color: Black

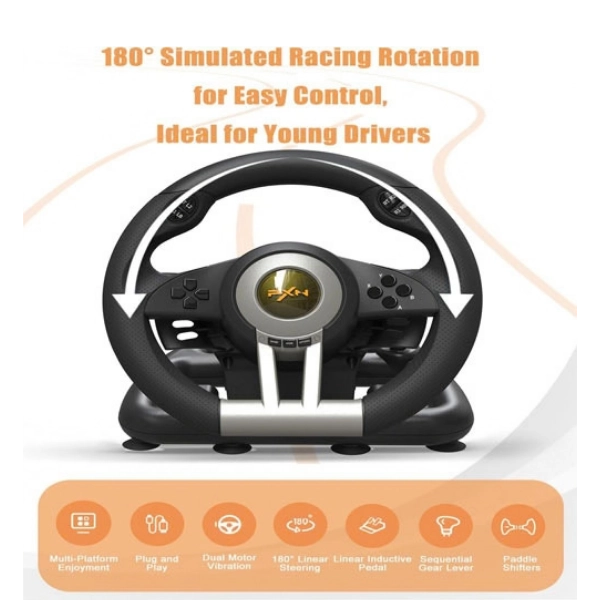

• Rotation Angle: 180 Degrees

• Steering Diameter: 26 cm (Approx. 10.2 Inches)

• Grip Material: Anti-Slip Soft Rubber Coating

• Feedback Type: Dual-Motor Vibration Feedback (Non-Force Feedback)

• Driving Modes: X-Input and D-Input Toggle Switch (PC)

• Pedal Configuration: Dual-Pedal Unit (Gas / Acceleration + Brake)

• Shifter Type: Integrated Sequential Gear Lever + Dual Paddle Shifters

• Mounting Mechanism: 7 Heavy-Duty Suction Cups + C-Clamp Bracket

CONNECTIVITY &!important; INTERFACE

Connection Type: Wired USB Cable

Wheel Unit Cable Length: Approx. 2.0 Meters

Pedal Unit Cable Length: Approx. 1.6 Meters

Port Interfaces:

- Main Cable: Standard USB Type-A (To Console / PC)

- Controller Port: USB Type-A Female (For Console Controller Passthrough Guidance)

- Pedal Port: RJ11 / Dedicated Connection Port

CONTROLS &!important; BUTTONS

Directional Pad: 8-Way D-Pad

Action Buttons: Standard 12-Button Action Layout (A, B, X, Y, LB, RB, LT, RT, Select, Start, L3, R3 equivalent)

Paddle Shifters: Dual Rear-Mounted Paddle Shifters (Left/Right)

Sensitivity Adjustment: 3-Level Steering Sensitivity Modes (Adjustable via Button Combinations)

PHYSICAL SPECIFICATIONS

Steering Wheel Unit Dimensions (L x W x H): Approx. 260 x 260 x 270 mm

Pedal Unit Dimensions (L x W x H): Approx. 225 x 205 x 120 mm

Total Weight (Wheel + Pedals): Approx. 2.5 kg

COMPATIBILITY &!important; SYSTEM REQUIREMENTS

Supported Platforms:

- PC (Windows 7 / 8 / 10 / 11)

- PlayStation 4 (PS4) &!important; PlayStation 3 (PS3)

- Xbox One / Xbox Series X|S

- Nintendo Switch

Console Connection Note: Requires Original Official Controller Connected via Data Cable
