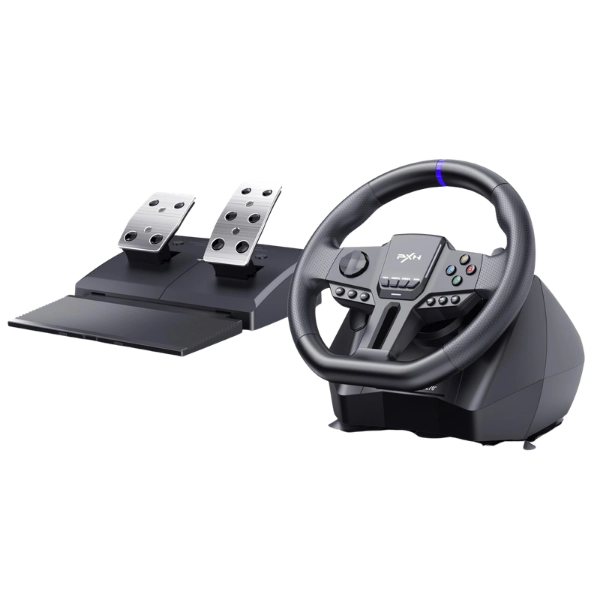

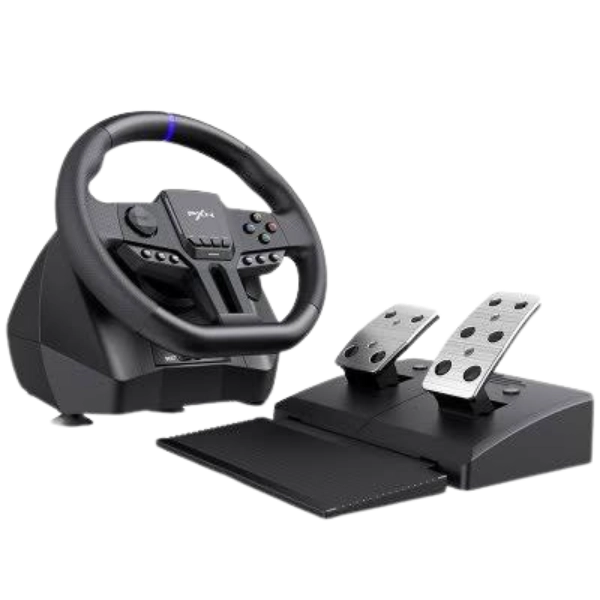

PXN V900 GEN2 RACING STEERING WHEEL PXN-V900 GEN2

✅ Specification:

• Model Name: PXN V900 Gen2

• Part Number (P/N): PXN-V900 GEN2

• Product Type: Multi-Platform Racing Steering Wheel &!important; Pedal Set

• Color: Black

• Rotation Angle: Dual-Mode Switchable (270 Degrees / 900 Degrees)

• Steering Wheel Diameter: 28 cm (Approx. 11 Inches)

• Grip Material: Ergonomic Textured Rubberized Grip

• Feedback Type: Dual-Motor Intelligent Vibration Feedback

• Driving Modes: X-Input and D-Input Physical Toggle Switch (PC)

• Pedal Configuration: Dual-Pedal Unit (Gas / Acceleration + Brake with Linear Foot Rest)

• Shifter Type: Dual Paddle Shifters (Rear-Mounted)

• Mounting System: 5 Heavy-Duty Suction Cups + Included Desktop C-Clamp Brackets

CONNECTIVITY &!important; INTERFACE

Connection Type: Wired USB Cable

Wheel Unit Cable Length: Approx. 2.0 Meters

Pedal Unit Cable Length: Approx. 1.6 Meters

Interface Ports:

- Main Cable: Standard USB Type-A (To Console / PC)

- Controller Passthrough Port: USB Type-A Female (For Console Controller Authentication)

- Pedal Port: RJ11 / Dedicated Connection Port

CONTROLS &!important; BUTTONS

Directional Pad: 8-Way D-Pad

Action Buttons: Standard 12-Button Layout with Multi-Function Mapping Options

Paddle Shifters: Linear Dual-Paddle Shifters

Sensitivity Adjustment: Multi-Stage Steering Sensitivity Adjustment via Mobile App / On-Board Shortcuts

Mobile App Configuration: Supported via PXN Wheel App (Bluetooth Configuration for Sensitivity, Button Mapping, and Deadzones)

PHYSICAL SPECIFICATIONS

Steering Wheel Unit Dimensions (L x W x H): Approx. 280 x 285 x 275 mm

Pedal Unit Dimensions (L x W x H): Approx. 240 x 220 x 130 mm

Total Weight (Wheel + Pedals): Approx. 3.2 kg

COMPATIBILITY &!important; SYSTEM REQUIREMENTS

Supported Platforms:

- PC (Windows 7 / 8 / 10 / 11)

- PlayStation 4 (PS4) &!important; PlayStation 3 (PS3)

- Xbox One / Xbox Series X|S

- Nintendo Switch

Console Connection Note: Requires Original Official Controller Connected via USB Data Cable for Console Authentication (PS4 / Xbox)
