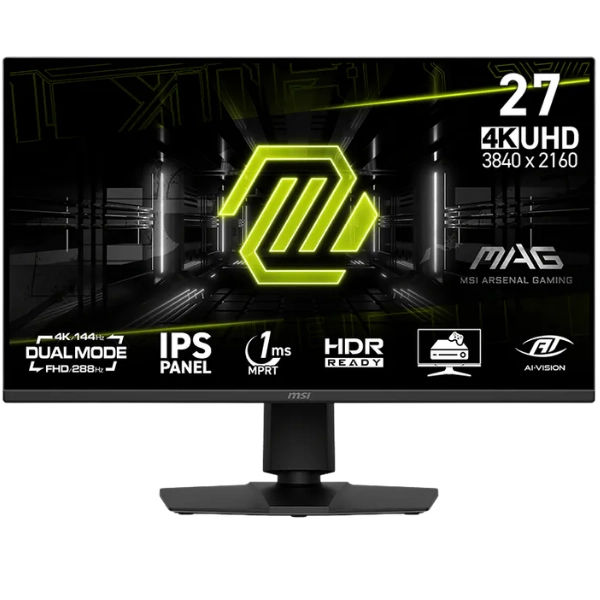

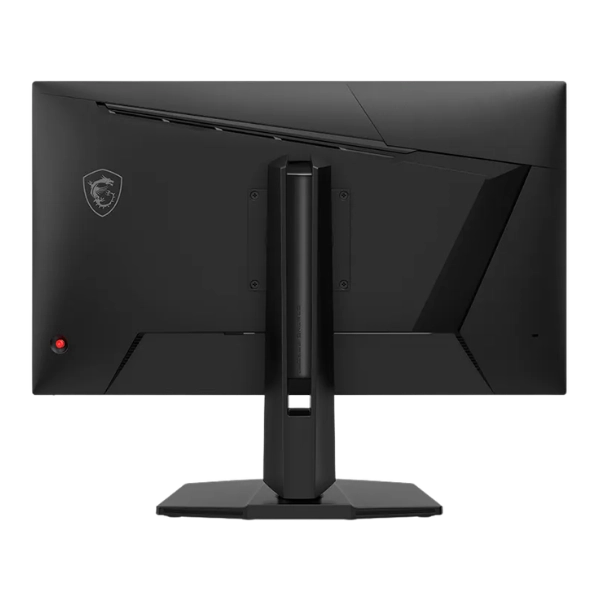

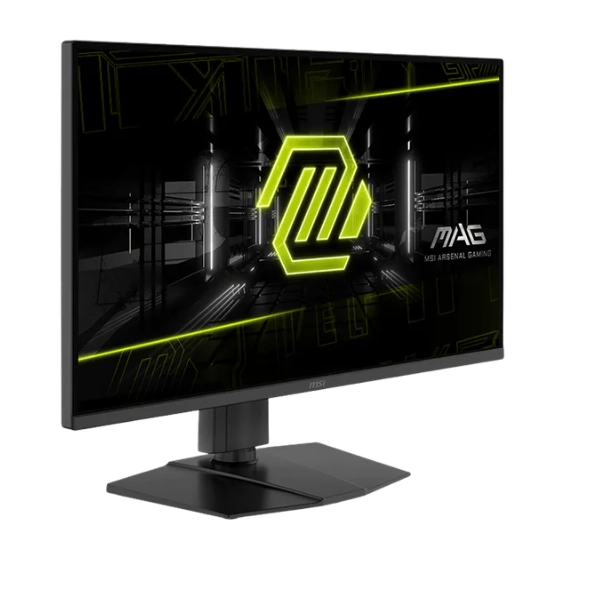

MSI MAG 275UPD E14 27 INCH 4K UHD 144HZ IPS MONITOR

MODEL NO: MSI MAG 275UPD E14 27 INCH 4K UHD 144HZ IPS MONITOR

Specifications:

Panel Size 27"

Active Display Area (mm) 596.736 (H) x 335.664 (V)

Curvature Flat

Panel Type IPS

Panel Resolution Normal: 3840 x 2160 (UHD)

Dual Mode: 1920 x 1080 (FHD)

Pixel Pitch (H x V) 0.1554 (H) x 0.1554 (V)

Aspect Ratio 16:9

Brightness (nits) SDR: 250 cd/m²

Contrast Ratio 1500:1 (Typ.)

DCR 100000000:1

Signal Frequency

UHD : 106.1~318.2KHz (H) / 48~144Hz

(V)

FHD : 106.1~318.2KHz (H) / 48~288Hz

(V)

ACTIVATED RANGE Normal: 48~144Hz

Dual Mode: 48~288Hz

Refresh Rate Normal: 144Hz

Dual Mode: 288Hz

Response time 1ms MPRT

DYNAMIC REFRESH RATE

TECHNOLOGY AMD FreeSync™ Premium

HDR Support HDR Ready

Video ports 1 x DisplayPort 1.4a (HBR3)

2 x HDMI™ 2.1 (4K@144Hz)

USB ports N/A

Audio ports 1x Headphone-out

Viewing Angle 178° (H) / 178° (V)

Adobe RGB / DCI-P3 / sRGB 84% / 90% / 130% (CIE1976 Standard)

Surface Treatment Anti-glare

Display Colors 1.07B, 10 bits (8 bits + FRC)

SPEAKER 2W x2

Console Mode

Supported Resolution &!important; Refresh Rate:

1080p: 60Hz and 120Hz

1440p: 60Hz and 120Hz

2160p: 60Hz and 120Hz

HDMI™ CEC: Supported

VRR: PS5 and Xbox Supported

Power Type Internal Power Board

Power Input 100~240V, 50/60Hz

Adjustment (Tilt) -5° ~ 20°

Adjustment (Swivel) -30° ~ 30°

Adjustment (Pivot) -90° ~ 90°

Adjustment (Height) 0~130 mm

Kensington Lock Yes

VESA Mounting 100 x 100 mm

Dimension with Stand (W x D x

H)

613.3 x 227.9 x 534.2mm

(24.1 x 8.9 x 21.1 inch)

Dimension without Stand (W x D

x H)

613.3 x 57.9 x 360.7mm

(24.1 x 2.2 x 14.3 inch)

Weight (NW / GW) 6.1 kg (13.4lbs) / 8.7 kg (19.1 lbs)

Carton Dimension (W X D X H) 810 x 150 x 462mm

(31.8 x 5.9 x 18.1 inch)

Accessories 1x DisplayPort Cable (1.4a), 1x Power

Cord (C13), 1x Quick Guide

Note

HDMI™: Normal (UHD) : 3840 x 2160

(Up to 144Hz)

Dual (FHD) : 1920 x 1080 (Up to 288Hz)

DisplayPort: Normal (UHD) : 3840 x

2160 (Up to 144Hz)

Dual (FHD) : 1920 x 1080 (Up to 288Hz)

Support: HDMI™ CEC, PIP/PBP!important; Non

Support: KVM
