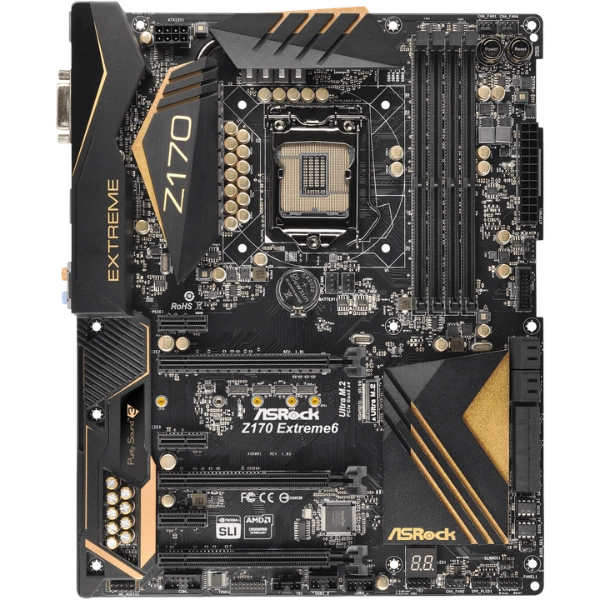

ASROCK EXTREME6 Z170 MOTHERBOARD

✅ Specification:

OVERVIEW &!important; PLATFORM

Form Factor: ATX (12.0 in x 9.6 in / 30.5 cm x 24.4 cm)

CPU Socket: LGA 1151

Processor Support: 6th &!important; 7th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron

Chipset: Intel Z170

POWER DELIVERY &!important; COOLING

Power Phase Design: 12 Power Phase Design

Power Chokes: Premium 60A Power Chokes &!important; Dual-Stack MOSFET (DSM)

Capacitors: Nichicon 12K Platinum Capacitors (100% Japan-made)

Cooling: XXL Aluminum Alloy Heatsinks for VRM &!important; Chipset

MEMORY SUPPORT

Slots: 4 x DDR4 DIMM Slots (Dual Channel)

Maximum Capacity: 64 GB

Supported Speeds: DDR4 3866+(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2400 / 2133 MHz

Memory Profiles: Intel Extreme Memory Profile (XMP) 2.0

EXPANSION SLOTS &!important; MULTI-GPU

PCIe Slots:

3 x PCI Express 3.0 x16 slots (single at x16, dual at x8/x8, triple at x8/x8/x4)

3 x PCI Express 3.0 x1 slots

Multi-GPU: NVIDIA Quad SLI / SLI, AMD 3-Way CrossFireX

STORAGE &!important; CONNECTIVITY

M.2 Slot: 1 x Ultra M.2 Socket (PCIe Gen3 x4 &!important; SATA3, up to 32 Gb/s!important; 2230 to 22110)

SATA Ports:

6 x SATA3 6.0 Gb/s via Intel Z170 (RAID 0, 1, 5, 10)

2 x SATA3 6.0 Gb/s via ASMedia ASM1061

SATA Express: 2 x SATA Express 10 Gb/s connectors

REAR PANEL I/O PORTS

1 x PS/2 Mouse/Keyboard Port

1 x DVI-D, 1 x HDMI, 1 x DisplayPort 1.2

1 x Optical SPDIF Out

1 x USB 3.1 Gen2 Type-A (10 Gb/s)

1 x USB 3.1 Gen2 Type-C (10 Gb/s)

6 x USB 3.1 Gen1 Ports

1 x RJ-45 LAN Port (Intel I219V Gigabit LAN)

1 x Clear CMOS Switch

5 x Gold Audio Jacks

DIAGNOSTICS &!important; AUDIO

Diagnostic Tools: Onboard Power/Reset buttons, Port 80 Debug LED, Dual BIOS Switch

Audio: Realtek ALC1150 (Purity Sound 3), 115dB SNR DAC, TI NE5532 Headset Amp (up to 600 Ohm)
