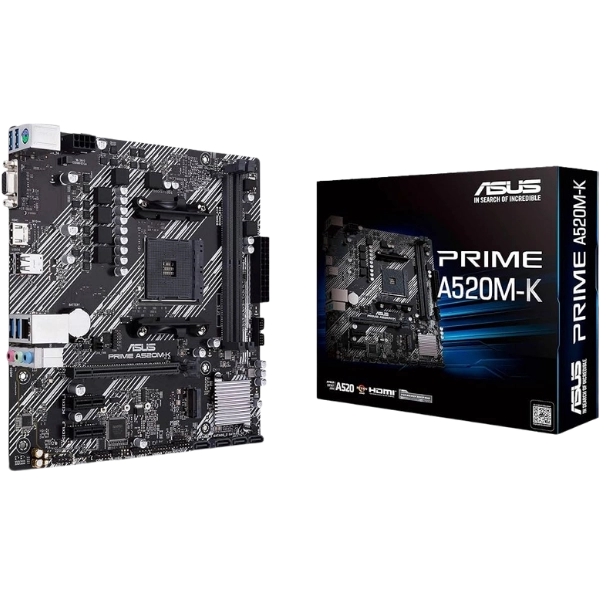

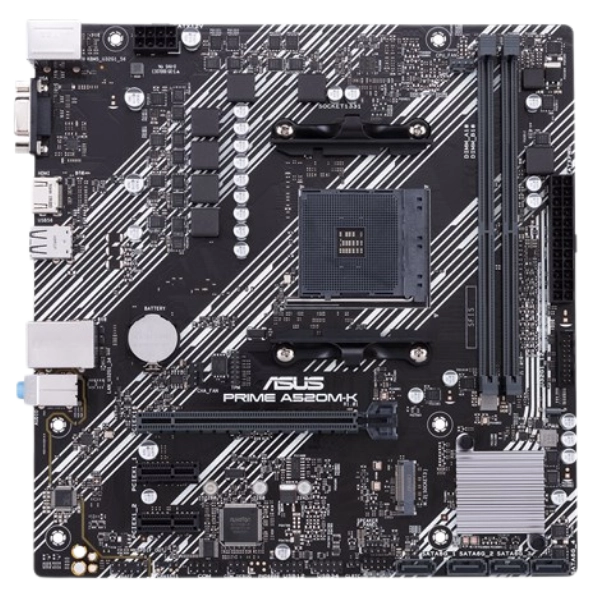

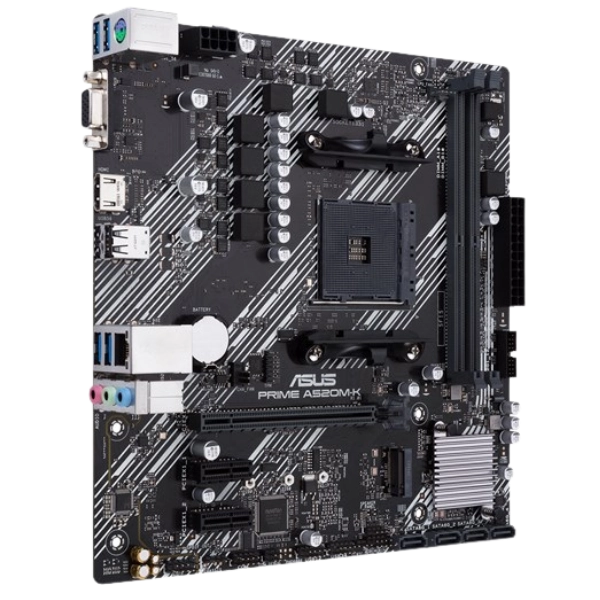

ASUS PRIME A520M-K MOTHERBOARD

✅ Specification:

Model Name: ASUS PRIME A520M-K

Form Factor: micro-ATX (mATX)

Chipset: AMD A520

Socket: Socket AM4

Processor Support: AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series Processors

Power Delivery: 4+2 Power Stages with DIGI+ VRM Control

Hardware Protection: ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O)

MEMORY SUPPORT

Memory Slots: 2 x DDR4 DIMM Slots (Dual Channel Architecture)

Max Memory Capacity: Up to 64GB

Supported Memory Frequencies: DDR4 4860(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3200 / 2933 / 2666 / 2400 / 2133 MHz (ECC &!important; Non-ECC, Un-buffered)

Profile Support: AMD Extreme Memory Profile (DOCP / XMP)

STORAGE &!important; EXPANSION SLOTS

PCIe Expansion Slots:

1 x PCIe 3.0 x16 Slot (Supports x16 mode from CPU)

2 x PCIe 3.0 x1 Slots

M.2 &!important; SATA Storage Interfaces:

1 x M.2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 3.0 x4 &!important; SATA modes)

4 x SATA 6Gb/s Ports (Supports RAID 0, 1, 10)

BACK PANEL I/O PORTS

Display Outputs:

1 x HDMI 2.1 Port (Supports 4K @ 60Hz)

1 x D-Sub (VGA) Port

USB Ports:

4 x USB 3.2 Gen 1 Type-A Ports (5Gbps)

2 x USB 2.0 Type-A Ports

Audio Ports: 3 x 3.5mm Audio Jacks (Realtek 7.1 Surround Sound High Definition Audio CODEC)

Networking: 1 x Realtek 1Gb Ethernet Port

Legacy Ports: 1 x PS/2 Keyboard/Mouse Combo Port

INTERNAL HEADERS &!important; CONNECTORS

Power Connectors: 1 x 24-pin EATX Main Power, 1 x 8-pin ATX 12V Power

Fan &!important; Cooling Headers: 1 x 4-pin CPU Fan Header, 1 x 4-pin Chassis Fan Header (Fan Xpert Control)

USB Headers:

1 x USB 3.2 Gen 1 Header (Supports 2 additional USB 3.2 Gen 1 ports)

2 x USB 2.0 Headers (Support 4 additional USB 2.0 ports)

Lighting &!important; Special Headers:

1 x 12V 4-Pin RGB Header

1 x SPI TPM Header

1 x COM Port Header

1 x Clear CMOS Header
