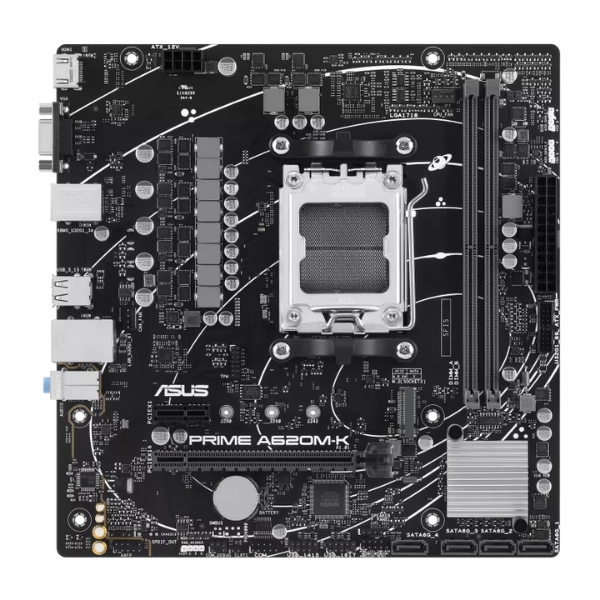

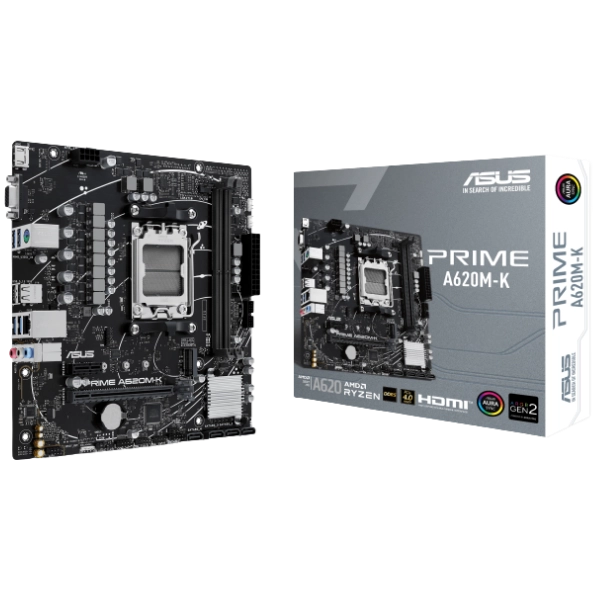

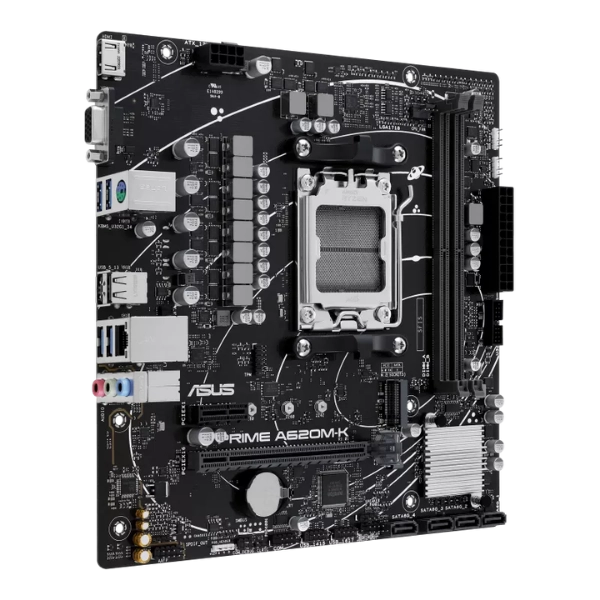

ASUS PRIME A620M-K MOTHERBOARD

✅ Specification:

Model Name: ASUS PRIME A620M-K

Form Factor: micro-ATX (mATX)

Chipset: AMD A620

Socket: Socket AM5

Processor Support: AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors

Power Delivery: 6+1+1 Power Stages with VRM Heatsink &!important; High-Thermal Conductivity Pads

Hardware Protection: ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O)

MEMORY SUPPORT

Memory Slots: 2 x DDR5 DIMM Slots (Dual Channel Architecture)

Max Memory Capacity: Up to 96GB

Supported Memory Frequencies: DDR5 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 MHz (Non-ECC, Un-buffered)

Profile Support: AMD EXPO (Extended Profiles for Overclocking) &!important; Intel XMP

STORAGE &!important; EXPANSION SLOTS

PCIe Expansion Slots:

1 x PCIe 4.0 x16 Slot (Supports x16 mode directly from CPU)

2 x PCIe 3.0 x1 Slots

M.2 &!important; SATA Storage Interfaces:

1 x M.2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode from CPU)

4 x SATA 6Gb/s Ports (Supports RAID 0, 1, 10)

BACK PANEL I/O PORTS

Display Outputs:

1 x DisplayPort 1.4

1 x HDMI 2.1 Port (Supports 4K @ 60Hz)

USB Ports:

4 x USB 3.2 Gen 1 Type-A Ports (5Gbps)

2 x USB 2.0 Type-A Ports

Audio Ports: 3 x 3.5mm Audio Jacks (Realtek 7.1 Surround Sound High Definition Audio CODEC)

Networking: 1 x Realtek 1Gb Ethernet Port

Special Button: 1 x BIOS FlashBack Button

Legacy Ports: 1 x PS/2 Keyboard/Mouse Combo Port

INTERNAL HEADERS &!important; CONNECTORS

Power Connectors: 1 x 24-pin EATX Main Power, 1 x 8-pin ATX 12V Power

Fan &!important; Cooling Headers: 1 x 4-pin CPU Fan Header, 2 x 4-pin Chassis Fan Headers (Fan Xpert Control)

USB Headers:

1 x USB 3.2 Gen 1 Header (Supports 2 additional USB 3.2 Gen 1 ports)

2 x USB 2.0 Headers (Support 4 additional USB 2.0 ports)

Lighting &!important; Special Headers:

1 x 5V 3-Pin Addressable Gen 2 ARGB Header (Aura Sync Support)

1 x SPI TPM Header

1 x Clear CMOS Header

1 x COM Port Header
