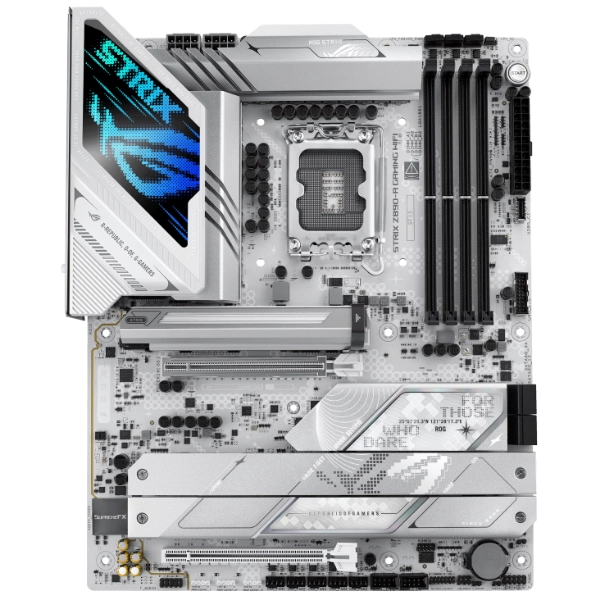

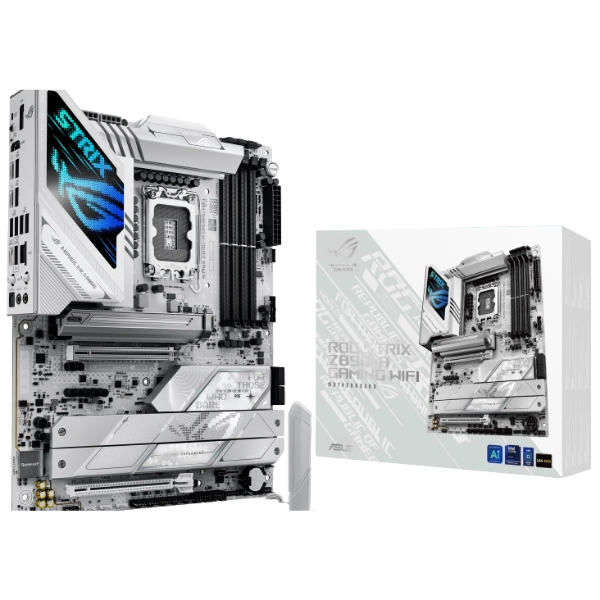

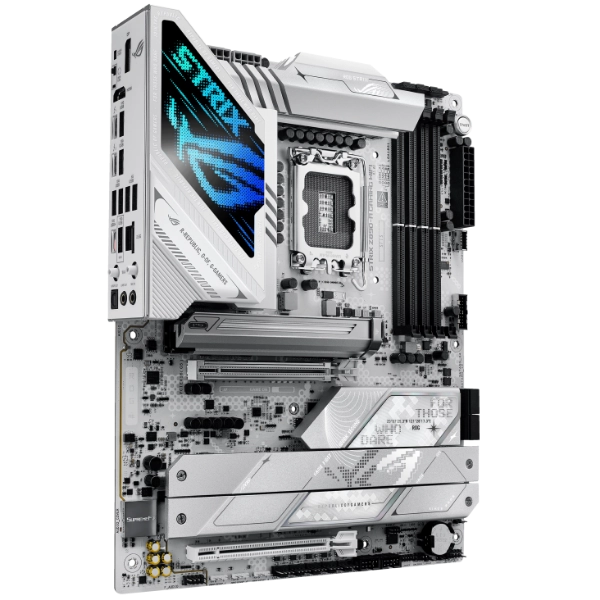

ASUS ROG STRIX Z890-A GAMING WIFI MOTHERBOARD

✅ Specification:

Model Name: ASUS ROG STRIX Z890-A GAMING WIFI

Form Factor: ATX

Chipset: Intel Z890

Socket: LGA 1851

Processor Support: Intel Core Ultra Processors (Series 2 / Arrow Lake-S)

Power Delivery: 16(110A)+1(110A)+2(90A)+2(90A) Power Stages with Massive VRM Heatsinks &!important; Metallic Backplate

Hardware Protection: ASUS 5X PROTECTION III, SafeSlot PCIe 5.0, SafeDIMM, Pre-Mounted I/O Shield

Warranty: 3 Years Limited Warranty

MEMORY SUPPORT

Memory Slots: 4 x DDR5 DIMM Slots (Dual Channel Architecture)

Max Memory Capacity: Up to 192GB

Supported Memory Frequencies: DDR5 8600+(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6400 / 5600 / 4800 MHz (Non-ECC, Un-buffered)

Profile Support: Intel Extreme Memory Profile (XMP) &!important; DIMM Fit / DIMM Flex Technology

STORAGE &!important; EXPANSION SLOTS

PCIe Expansion Slots:

1 x PCIe 5.0 x16 Slot (Supports x16 mode directly from CPU with PCIe Slot Q-Release Slim)

1 x PCIe 4.0 x16 Slot (Supports x4 mode from Chipset)

M.2 &!important; SATA Storage Interfaces:

M.2_1 Slot: Type 2242/2260/2280/22110 (Supports PCIe 5.0 x4 mode from CPU with M.2 Q-Release &!important; M.2 Q-Slide)

M.2_2 Slot: Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode from CPU)

M.2_3 Slot: Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode from Chipset)

M.2_4 Slot: Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode from Chipset)

M.2_5 Slot: Type 2242/2260/2280 (Supports PCIe 4.0 x4 &!important; SATA modes from Chipset)

4 x SATA 6Gb/s Ports (Supports RAID 0, 1, 5, 10)

BACK PANEL I/O PORTS

Thunderbolt Ports: 2 x Thunderbolt 4 USB Type-C Ports (Up to 40Gbps, DisplayPort 1.4 / 2.1 output)

Display Outputs:

1 x HDMI 2.1 Port (Supports 4K @ 60Hz)

USB Ports:

5 x USB 10Gbps Ports (4 x Type-A + 1 x USB Type-C)

4 x USB 5Gbps Ports (4 x Type-A)

Audio Ports: 5 x Gold-Plated 3.5mm Audio Jacks + 1 x Optical S/PDIF Out (ROG SupremeFX 7.1 Surround Sound ALC4080 CODEC + Savitech SV3H712 AMP)

Networking:

1 x Intel 2.5Gb Ethernet Port (ASUS LANGuard)

Wi-Fi 7 (802.11be) Dual-Antenna Module (ASUS Q-Antenna) + Bluetooth 5.4

Special Buttons: 1 x BIOS FlashBack Button, 1 x Clear CMOS Button

INTERNAL HEADERS &!important; CONNECTORS

Power Connectors: 1 x 24-pin EATX Main Power, 2 x 8-pin ATX 12V Power Connectors

Fan &!important; Cooling Headers: 1 x 4-pin CPU Fan Header, 1 x 4-pin CPU OPT Fan Header, 1 x 4-pin AIO Pump Header, 5 x 4-pin Chassis Fan Headers

USB Headers:

1 x USB 20Gbps Type-C Front Panel Header (Supports up to 30W USB Power Delivery / Quick Charge 4+)

2 x USB 3.2 Gen 1 Headers (Support 4 additional USB 5Gbps ports)

2 x USB 2.0 Headers (Support 4 additional USB 2.0 ports)

Lighting &!important; Special Headers:

3 x Addressable Gen 2 ARGB Headers (Aura Sync Support)

1 x Alteration Mode Switch

1 x Thermal Sensor Header

1 x CPU Over Voltage Jumper
