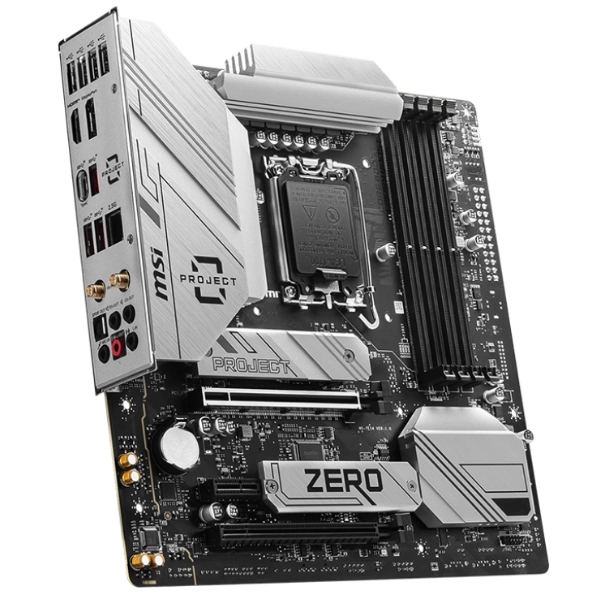

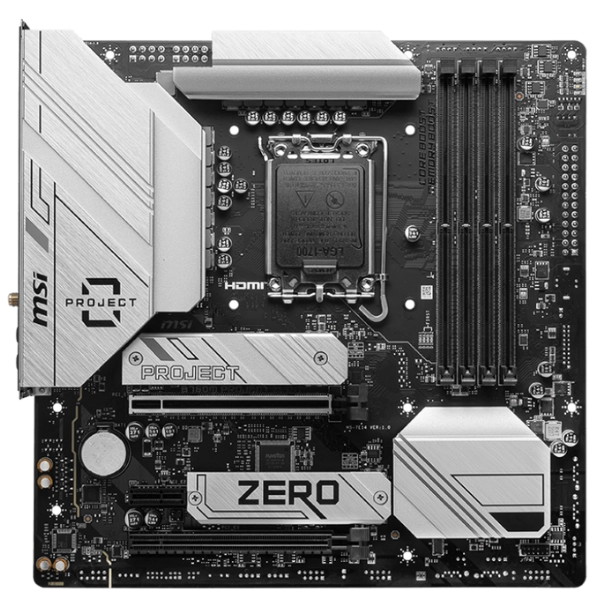

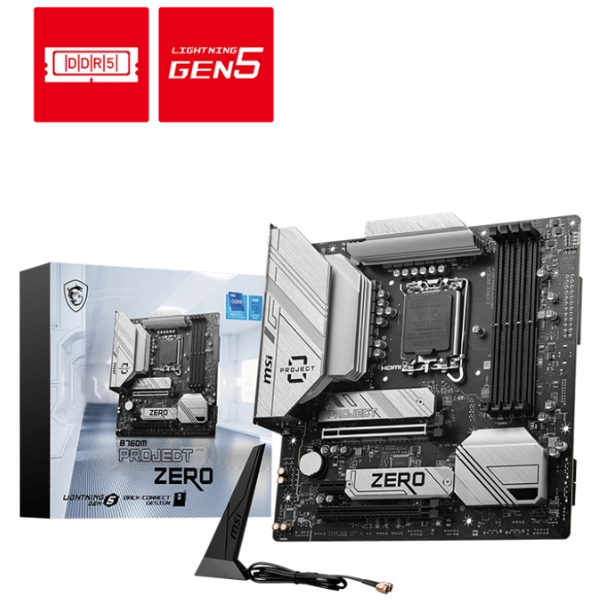

MSI B760M PROJECT ZERO DDR5 MOTHERBOARD

MODEL NO: MSI B760M PROJECT ZERO DDR5 MOTHERBOARD

Specifications:

CPU Support Support Intel®

Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium®, Gold and Celeron® Processors

CPU Socket LGA 1700

Chipset Intel®

B760 Chipset

Expansion Slots 1x PCIe 5.0 x16 slot

1x PCIe 4.0 x16 slot

1x PCie 3.0 x1 slot

Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort

1.4

– Requires Processor Graphics

Memory Support 4 DIMMs, Dual Channel DDR5-7800+ (OC)

Storage 2x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gbps ports

USB ports 1x USB 20Gbps (Type-C)

4x USB 10Gbps (3 Type-A + 1 Type-C)

2x USB 5Gbps (Type-A)

8x USB 2.0

LAN Realtek®

2.5Gbps LAN

Wireless /

Bluetooth

Intel®

Wi-Fi 6E, Bluetooth 5.3

Audio 8-Channel (7.1) HD Audio with Audio Boost
