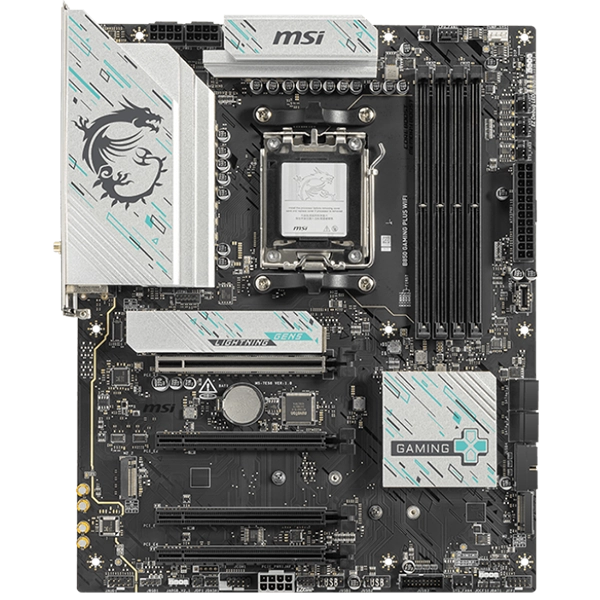

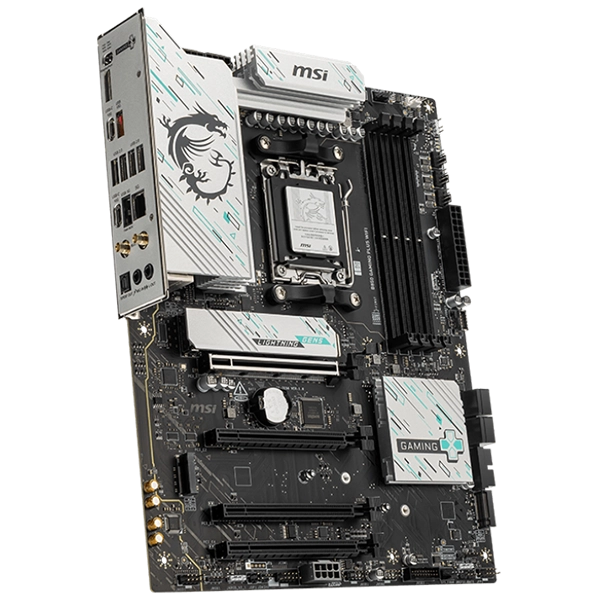

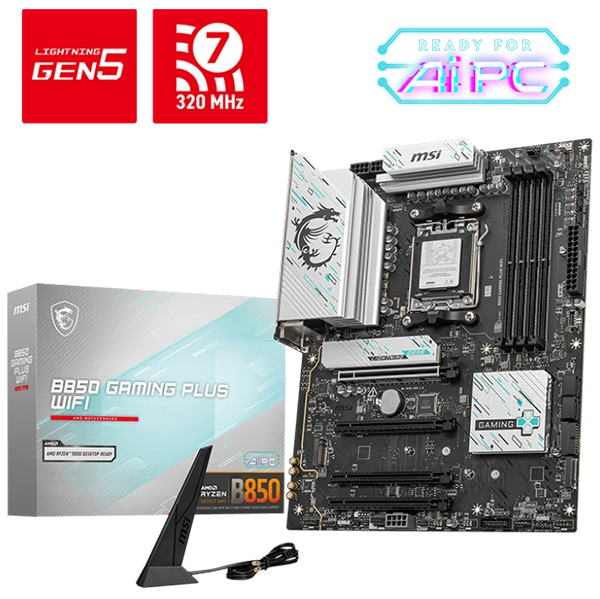

MSI B850 GAMING PLUS WIFI MOTHERBOARD

MODEL NO: MSI B850 GAMING PLUS WIFI MOTHERBOARD

Specifications:

CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop

Processors

CPU Socket AMD Socket AM5

Chipset AMD B850 Chipset

Expansion slot 1 x PCIe 5.0 x16 slot,

1 x PCIe 4.0 x16 slot,

2 x PCIe 3.0 x1 slots

Display Interface Support 4K@60Hz as specified in DisplayPort 1.2 HBR

– Requires Processor Graphics

Memory Support 4 DIMMs, Dual Channel DDR5 - 8200+ MT/s (OC)

Storage 1 x M.2 Gen5 x4 128Gbps slot,

1 x M.2 Gen4 x4 64Gbps slot,

1 x M.2 Gen4 x2 32Gbps slot,

4x SATA 6Gbps ports

USB ports 3 x USB 10Gbps (1 Type-A + 2 Type-C),

6 x USB 5Gbps (5 Type-A + 1 Type-C)

8 x USB 2.0

LAN Realtek®

5Gbps LAN

WIFI / BT Wi-Fi 7 Solution, Bluetooth 5.4

Audio 8-Channel (7.1) HD Audio with Audio Boost
