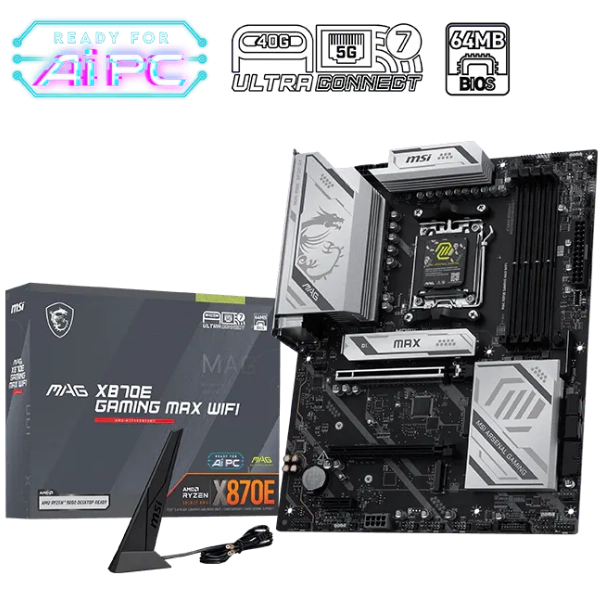

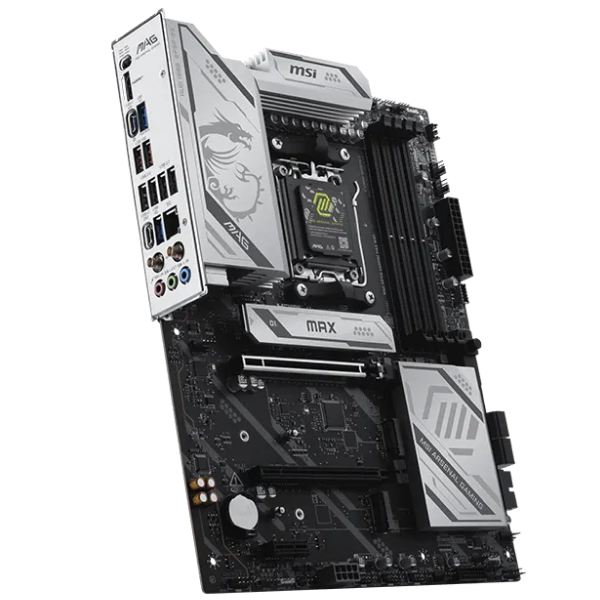

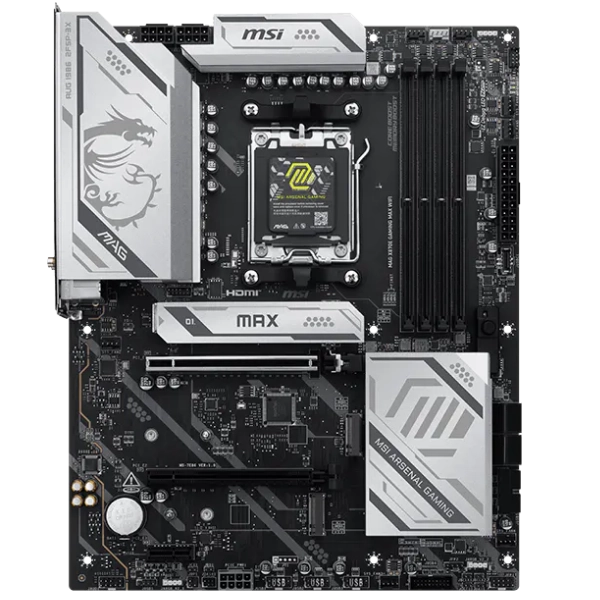

MSI MAG X870E GAMING MAX WIFI MOTHER BOARD

MODEL NO: MSI MAG X870E GAMING MAX WIFI MOTHER BOARD

✅Specifications:

Model Name MAG X870E GAMING MAX WIFI

CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop

Processors

Chipset Socket AMD Socket AM5

Chipset AMD X870E Chipset

Expansion slot 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x4 slot, 1x PCIe 3.0 x1 slot

Display Interface Support 4K@60Hz as specified in HDMI™ 2.1 TMDS,

1x USB4 port support USB Type-C display outputs – Requires

Processor Graphics

Memory Support 4 DIMMs, Dual Channel DDR5-8200+ MT/s (OC)

Storage 1x M.2 Gen5 x4 128Gbps slot

2x M.2 Gen4 x4 64Gbps slots

4x SATA 6Gbps ports

USB Ports 1x USB 40Gbps (1 Type-C)

1x USB 20Gbps (1 Type-C)

3x USB 10Gbps (2 Type-A + 1 Type-C)

6x USB 5Gbps (6 Type-A)

10x USB 2.0

LAN Realtek®

5G LAN

Wireless / BT Wi-Fi 7 Solution, Bluetooth 5.4

Audio 8-Channel (7.1) HD Audio with Audio Boost

CONNECTIONS

1. Clear CMOS Button

3. USB 2.0

5. Wi-Fi / Bluetooth

7. Flash BIOS Button

9. USB 40Gbps (Type-C)

11. USB 20Gbps (Type-C)

2. USB 5Gbps (Type-A)

4. 5G LAN

6. Audio Connectors

8. HDMI™

10. USB 10Gbps (Type-A)

12. USB 5Gbps (Type-A)
