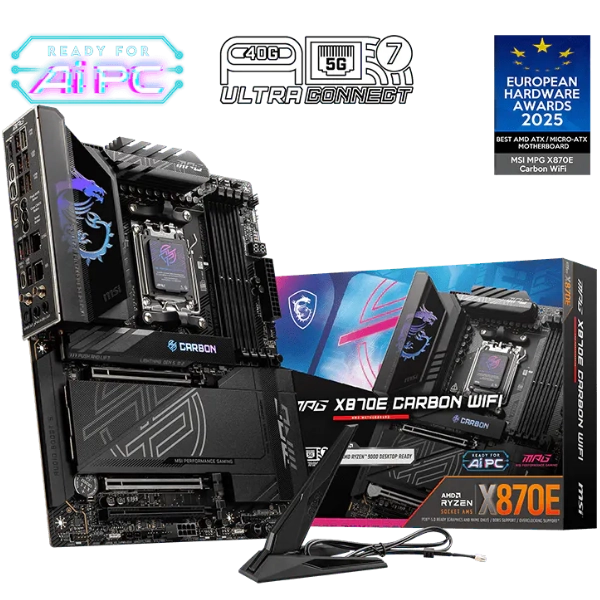

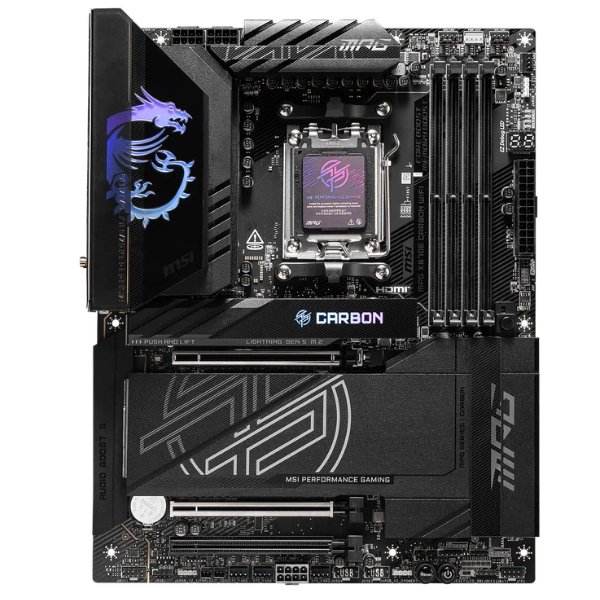

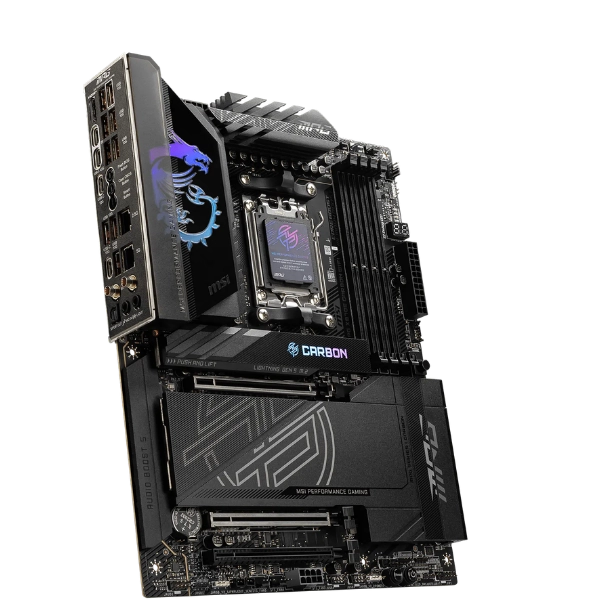

MSI MPG X870E CARBON WIFI DDR5 MOTHERBOARD

MODEL NO: MSI MPG X870E CARBON WIFI DDR5 MOTHERBOARD

✅Specifications:

Model Name MAG X870E GAMING MAX WIFI

CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop

Model Name MPG X870E CARBON WIFI

CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop

Processors

CPU Socket AMD Socket AM5

Chipset AMD X870E Chipset

Expansion slots 2x PCIe 5.0 x16 slots

1x PCIe 4.0 x16 slot

Display Interface Support 8K@60Hz as specified in HDMI™ 2.1 FRL,

2x USB4 ports support USB Type-C display outputs

– Requires Processor Graphics

Memory Support 4 DIMMs, Dual Channel DDR5 8400+ MT/s(OC)

Storage 2x M.2 Gen5 x4 128Gbps slots

2x M.2 Gen4 x4 64Gbps slots

4x SATA 6Gbps ports

USB ports 2x USB 40Gbps (2 Type-C)

1x USB 20Gbps (1 Type-C)

11x USB 10Gbps (2 Type-C + 9 Type-A)

4x USB 5Gbps (4 Type-A)

4x USB 2.0 Type-A

LAN Realtek®

5Gbps LAN

Realtek®

2.5Gbps LAN

Wireless /

Bluetooth

Wi-Fi 7 Solution, Bluetooth 5.4

Audio 8-Channel (7.1) HD Audio with Audio Boost 512. USB 5Gbps (Type-A)

CONNECTIONS

1. USB 10Gbps Type-A

3. Clear CMOS Button

5. 2.5G LAN Port

7. HD Audio Connectors

9. USB 40Gbps Type-C

11. USB 10Gbps Type-A

13. Wi-Fi / Bluetooth Antenna

2. Flash BIOS Button

4. Smart Button

6. 5G LAN Port

8. HDMI™

10. USB 10Gbps Type-C

12. USB 10Gbps Type-C

14. Optical S/PDIF OUT
