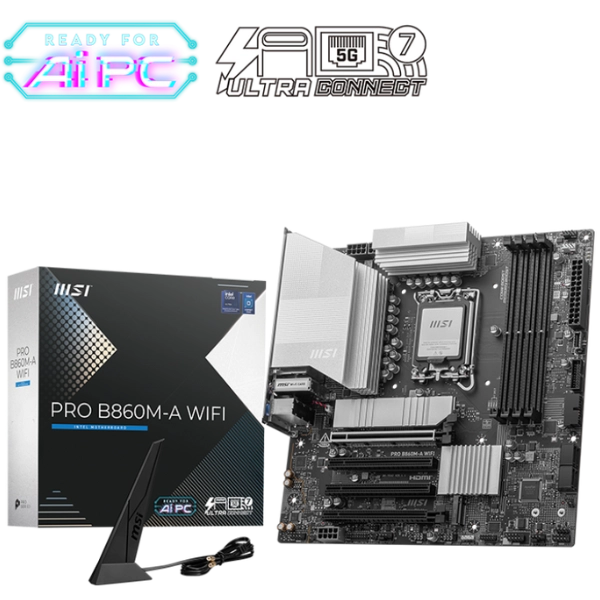

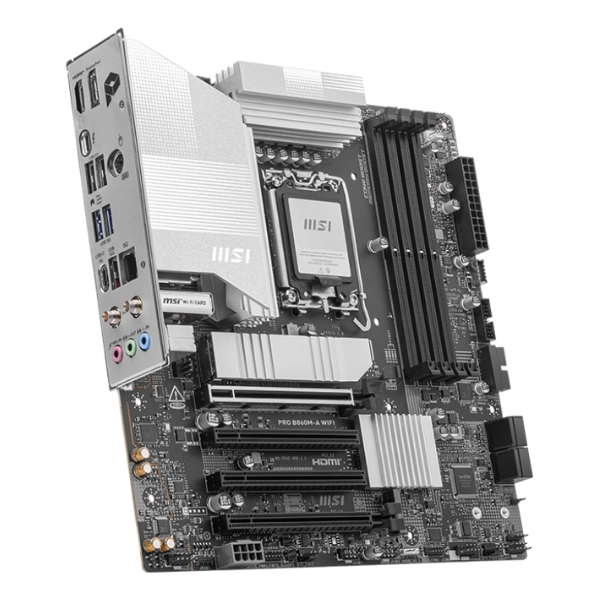

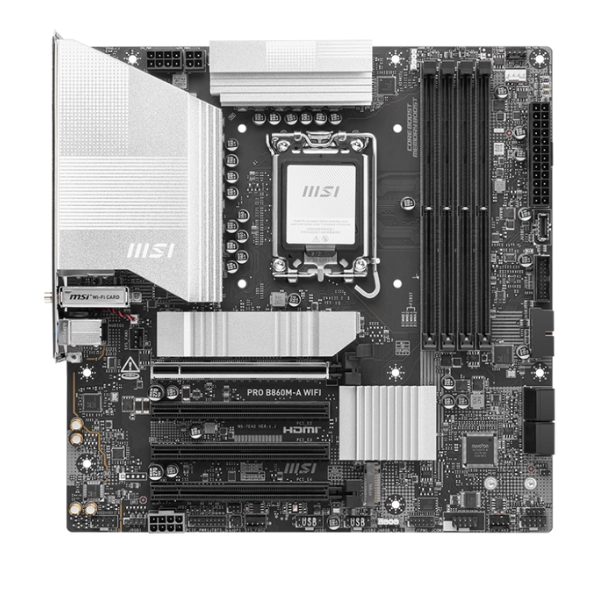

MSI PRO B860M A WIFI DDR5 MOTHERBOARD

MODEL NO: MSI PRO B860M A WIFI DDR5 MOTHERBOARD

Specifications:

CPU Support Support Intel®

Core™ Ultra Processors (Series 2)

CPU Socket LGA 1851

Chipset Intel®

B860 Chipset

Expansion Slots 1 x PCIe 5.0 x16 slot

1 x PCIe 4.0 x16 slot

2 x PCIe 4.0 x1 slots

Display Interface 1 x Thunderbolt™ 4 (Type-C),

Support 4K@60Hz as specified in HDMI™ 2.1,

DisplayPort 1.4 – Requires Processor Graphics

Memory Support 4 DIMMs, Dual Channel DDR5 - 8800+ MT/s (OC)

Storage 1 x M.2 Gen5 x4 128Gbps slot,

1 x M.2 Gen4 x4 64Gbps slot,

1 x M.2 Gen4 x2 32Gbps slot,

4 x SATA 6Gbps ports

Thunderbolt™ 4 1 x USB Type-C up to 40Gbps,

Charging support up to 5V/3A , 15W

USB ports 2 x USB 10Gbps (1 Type-A + 1 Type-C),

7 x USB 5Gbps (6 Type-A + 1 Type-C),

6 x USB 2.0

LAN Realtek®

8126 5G LAN

WiFi / BT Intel®

Wi-Fi 7, Bluetooth 5.4

Audio 8-Channel (7.1) HD Audio with Audio Boost
