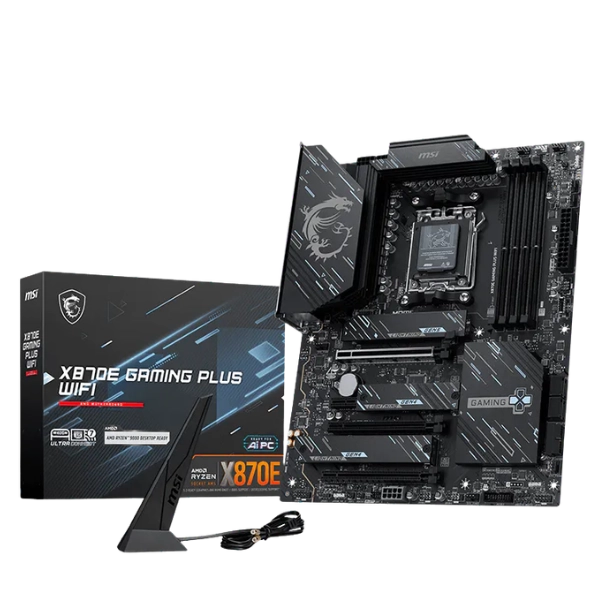

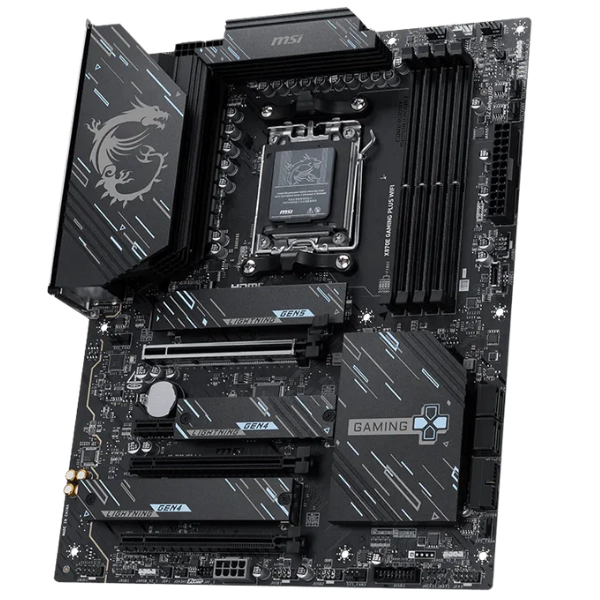

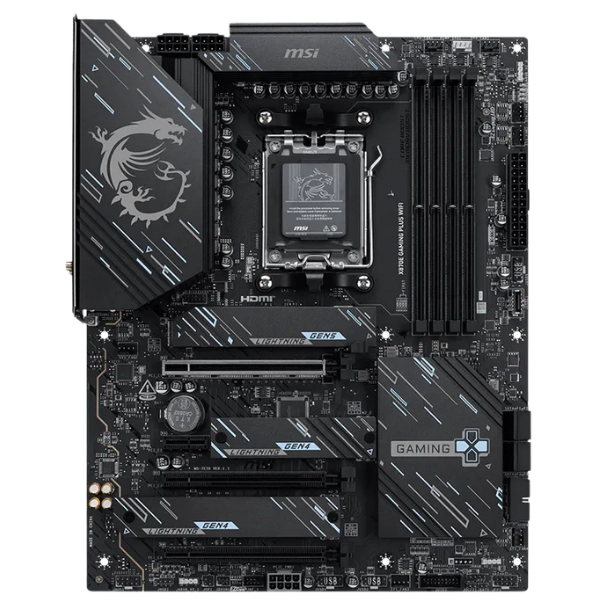

MSI X870E GAMING PLUS WIFI MOTHERBOARD

MODEL NO: MSI X870E GAMING PLUS WIFI MOTHERBOARD

Specifications:

CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop

Processors

CPU Socket AMD Socket AM5

Chipset AMD X870E Chipset

Graphics

Interface

1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, 2x PCIe 3.0 x1

slots

Display Interface 1 x USB4 port supports USB Type-C display output,

Support 4K@60Hz as specified in HDMI™ 2.1 – Requires

Processor Graphics

Memory Support 4 DIMMs, Dual Channel DDR5-8200+ MT/s (OC)

Storage 1 x M.2 Gen5 x4 128Gbps slot,

2 x M.2 Gen4 x4 64Gbps slots,

4x SATA 6Gbps ports

USB ports 1 x USB 40Gbps (1 Type-C),

1 x USB 20Gbps (1 Type-C),

3 x USB 10Gbps (2 Type-A + 1 Type-C),

6 x USB 5Gbps (6 Type-A),

10 x USB 2.0

LAN Realtek®

5G LAN

Wireless /Bluetooth

Wi-Fi 7 Solution, Bluetooth 5.4

Audio 8-Channel (7.1) HD Audio with Audio Boost
