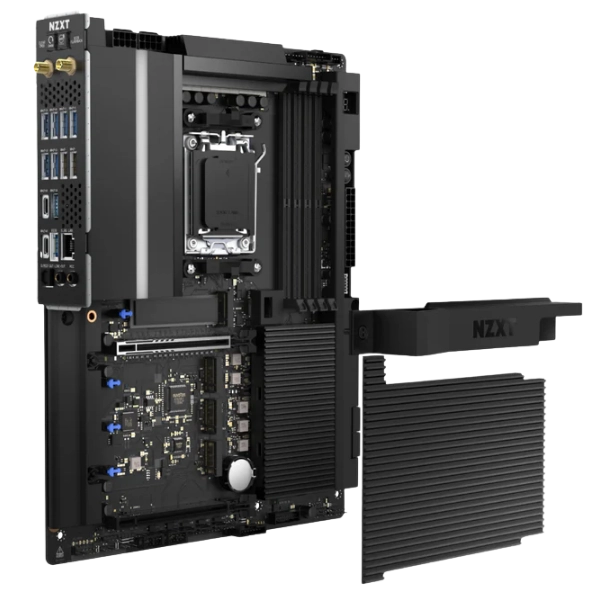

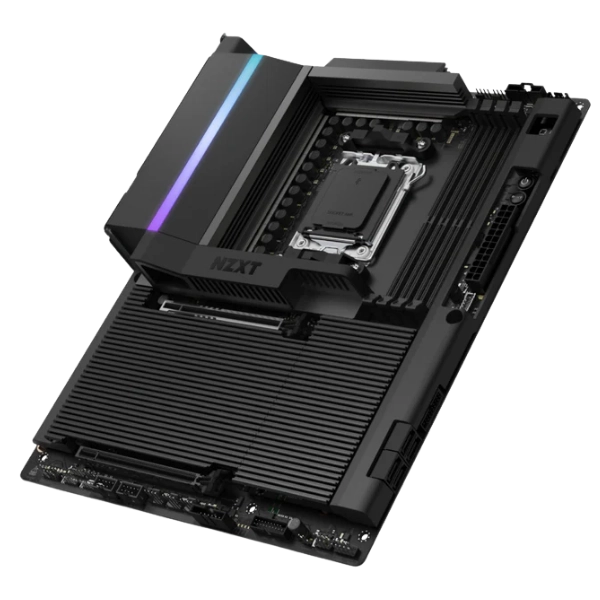

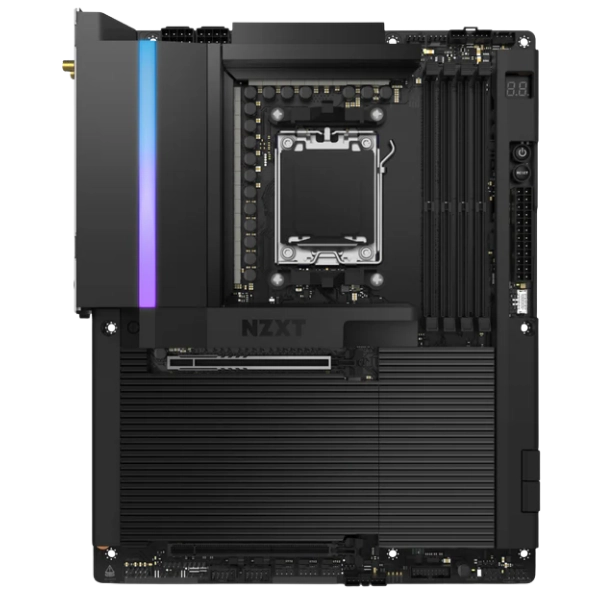

NZXT N9 X870E BLACK RGB WIFI ATX MOTHERBOARD

MODEL NO: NZXT N9 X870E BLACK RGB WIFI ATX MOTHERBOARD

Specifications:

Form Factor ATX

Chipset AMD® X870E

Socket Type AMD® AM5

CPU Support

AMD® Socket AM5 Ryzen™ Processors

7000, 8000, and 9000* Series

DIMM Slots 4

Wireless Support Tri-Band WiFi 7, Bluetooth 5.4

Operating System Windows® 10 64-bit or newer

NZXT CAM Support Yes

Memory

DIMM Type DDR5 288-pin

Max Memory Capacity 192 GB

Memory Architecture Dual Channel

Max Memory Speed Please refer to Memory QVL on the download page for further information.

XMP Support Yes

AMD EXPO Support Yes

Integrated Graphics &!important; Audio

Audio Codec Realtek® ALC4080

Graphics Controller AMD RDNA™ Graphics

(Requires a supported AMD Ryzen CPU with embedded graphics)

Integrated Graphics Output

2 x USB4, Supports HDCP 2.3

Only the CPU's embedded graphics can be displayed through USB4 ports. To display to a USB-C monitor, please use AM5 Ryzen™ 9000, 8000, or 7000 processors with embedded graphics support.

Maximum Resolution 7680 x 4320 @ 30Hz

Expansion Support

PCIe Slots

PCIEX16_1

PCIe 5.0 x16 (supports x16 mode) via CPU

PCIEX16_2

PCIe 3.0 x 16 (supports x2 mode) via Chipset

Storage Support

M.2 Type 2242/2260/2280 Slots

(M-Key) 4

M.2 Slots

M2_1

Blazing M.2 Socket, PCIe 5.0 (supports x4 mode) @ 128 Gb/s via CPU

Supports 2280 form factor

M2_2, M2_3, M2_4

Hyper M.2 Socket, PCIe 4.0 (supports x4 mode) @ 64 Gb/s via Chipset

Supports 2280 form factor

SATA 6Gb/s Ports 4

RAID Support

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, and RAID 10 for NVMe storage devices

Supports NVMe SSD as boot disks Yes

Network and Wireless Support

Onboard LAN Controller

Realtek® RTL8126CG

5 Gigabit LAN 10/100/1000/2500/5000 MB/s

Onboard WLAN (WiFi) Controller

MediaTek MT7925B232M Wi-Fi 7

Supports IEEE 802.11 a/b/g/n/ac/ax/axe/be

Supports 2.4 GHz / 5 GHz / 6 GHz* frequency band

Supports 160 MHz channel bandwidth with 6 GHz* frequency band

1 antenna to support 2 (transmit) x 2 (receive) diversity technology

Supports Bluetooth

Supports MU-MIMO

* Wi-Fi 7 (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.

Bluetooth Version Bluetooth V5.4

Included Antenna(s) 2x "Pen Type" RP-SMA Male Compatible

Rear I/O

USB 4 (Type C) (40 Gb/s)*

*Supports USB PD 3.0 up to 5V@3A (15W) charging) 2

USB 3.2 Gen 2 (Type-A) 5

USB 3.2 Gen 1 (Type-A) 3

USB 2.0 (Type-A) 2

Wireless Antenna 2 (2T2R)

LAN (RJ45) 1

Audio Jacks

1 x Line Out

1 x Microphone

1 x Optical SPDIF Out

Additional Features

1 x BIOS Flashback Button

1 x Clear CMOS Button

Internal I/O

M.2 (M-Key) Slot 4

M.2 (E-Key) Slot 1 *

* For included wireless card

SATA 6Gbps Port 4

USB 3.2 Gen 2 Header (for Type-C) 1

USB 3.2 Gen 1 Header (for Type-A) 2 (Up to 2 ports per header)

USB 2.0 Header 2 (Up to 2 ports per header)

Front Panel Audio 1

4-pin PWM Fan Header

1 x CPU_FAN

1 x AIO_PUMP

3 x SYS_FAN

NZXT RGB + PWM Header (8-pin) 2

NZXT RGB Header (4-pin) 1 *

* Supports up to 5 NZXT RGB devices, 40 LEDs total per header.

5V ARGB Header 2 *

* Supports up to 40 LEDs per header

ATX Power Header

1 x 24-pin ATX Power

2 x 8-pin ATX 12V Power

Additional Features

1 x Power Button

1 x Reset Button

1 x Digital Debug LED

1 x POST LEDs
