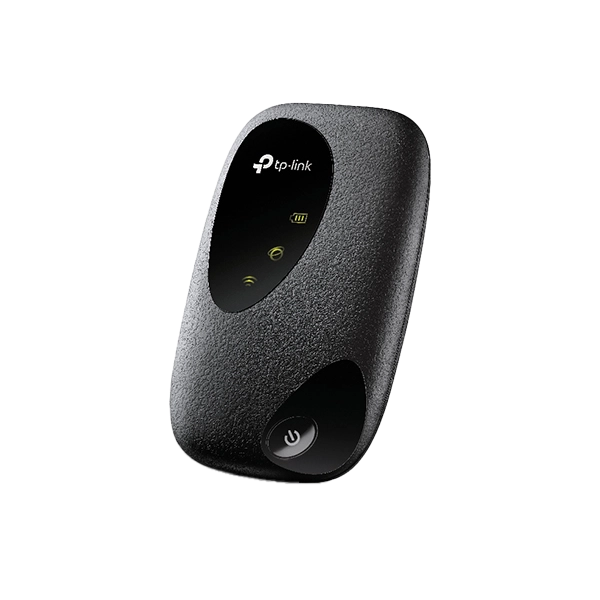

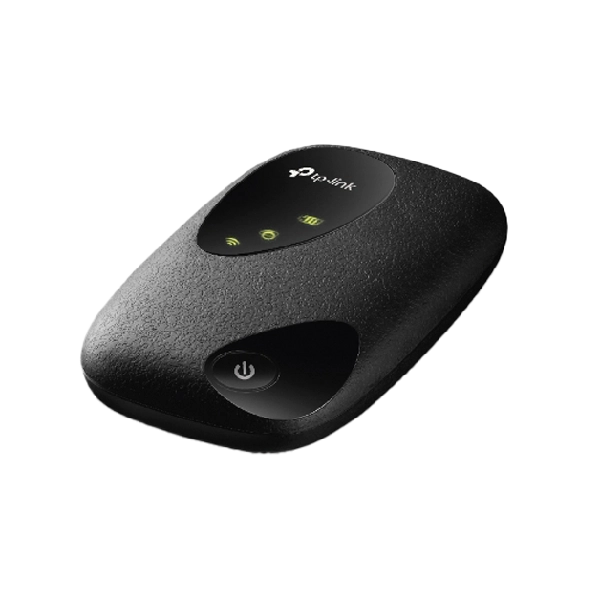

TP LINK M7000 4G LTE MOBILE WIFI ROUTER

MODEL NO: TP LINK M7000 4G LTE MOBILE WIFI ROUTER

Specifications:

Interface: 1 micro USB port for power supply

1 Micro SIM card slot

Button Power Button, Reset Button

Power Supply Internal 2150 mAh Rechargeable Battery (TBL-65A2150)

External 5V/1A

Network Type 4G:

FDD-LTE B1/B3/B5/B7/B8/B20/B28

(2100/1800/850/2600/900/800/750 MHz)

TDD-LTE B38/B40/B41

(2600/2300/2500 MHz)

3G:

DC-HSPA+/HSPA+/HSPA/UMTS B1/B5/B8

(2100/850/900 MHz)

Data Rates DL: 150 Mbps, UL: 50 Mbps

Dimensions ( W x D x H ) 3.7×2.2×0.8 in. (94×56.7×19.8 mm)

Antenna Internal Antennas

LED Display Wi-Fi status, Internet connection status, Battery status

WIRELESS FEATURES

Wireless Standards: IEEE 802.11b/g/n

Wireless Speeds Up to 300 Mbps

Frequency: 2.4 GHz

Reception Sensitivity 11b 11Mbps: -87.5dBm!important;

11g 54Mbps: -74dBm!important;

11n HT20 MCS7: -70dBm!important;

11n HT40 MCS7: -68dBm!important;

Wireless Security Support WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast

DHCP Server, Client, DHCP Client List

Transmission Power <!important; 20dBm

OTHERS

RNDIS Support: Yes

System Requirement: Windows XP/7/8/10/11

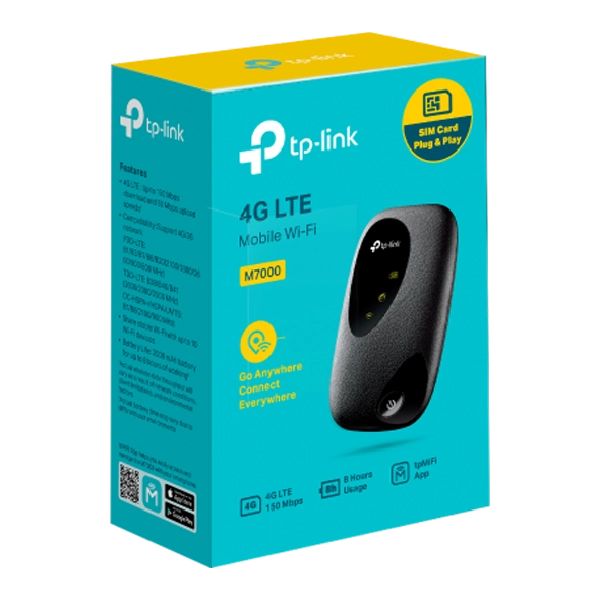

Package Content Mobile Wi-Fi M7000

0.4m Micro USB Cable

2150 mAh Battery

Quick Installation Guide

System Requirements Windows 11/10/8/7/vista/XP, Mac OS, Android, iOS, Windows Phone

Certifications CE, RoHS

Environment Operating Temperature: 0℃~35℃ (32℉ ~95℉)

Storage Temperature: -20℃~60℃ (-4℉ ~140℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
