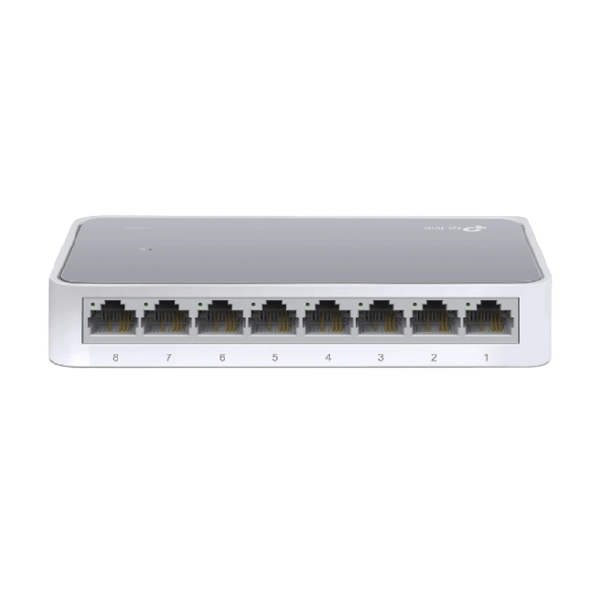

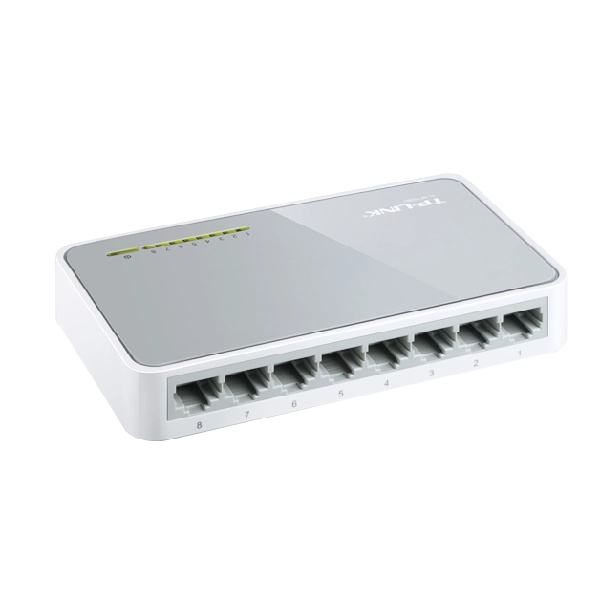

TP-LINK TL-SF1008D 8 PORT 100-100M NETWORK SWITECH

MODEL NO: TP-LINK TL-SF1008D 8 PORT 100/100M NETWORK SWITECH

Specifications:

HARDWARE FEATURES

Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x

CSMA/CD

Interface 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity Fanless

External Power Supply 100-240VAC, 50/60Hz

(Output: 9VDC / 0.6A)

Buffer Size 768Kb

Data Rates 10/100Mbps at Half Duplex !important;

20/200Mbps at Full Duplex

LED Indicator Power

Port network activity (on the network module)

Dimensions ( W x D x H ) 5.3 × 3.1 × 0.9 in.

(135 × 79 × 23mm)

Max Power Consumption 2W

Max Heat Dissipation 7.0 BTU/h

SOFTWARE FEATURES

Transfer Method Store and Forward

Advanced Functions Green Technology

802.3X Flow Control, Back Pressure

OTHERS

Certification FCC, RoHS

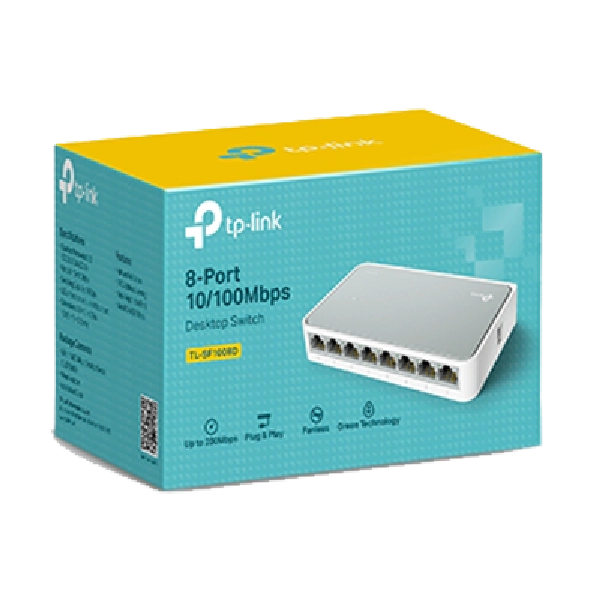

Package Contents 8-Port 10/100Mbps Desktop Switch

Power Adapter

User Guide

Environment Operating Temperature: 0°C~40°C (32°F~104°F)!important;

Storage Temperature: -40°C~70°C (-40°F~158°F)!important;

Operating Humidity: 10%~90% non-condensing!important;

Storage Humidity: 5%~90% non-condensing
