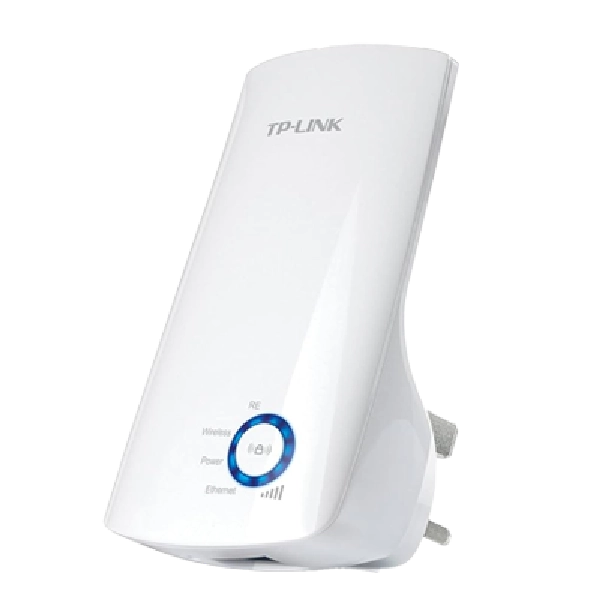

TP-LINK TL-WA850RE 300MBPS WI-FI RANGE EXTENDER

MODEL NO: TP-LINK TL-WA850RE300MBPS UNIVERSAL WI-FI RANGE EXTENDER

Specifications:

Working Modes Range Extender/Access Point

HARDWARE FEATURES

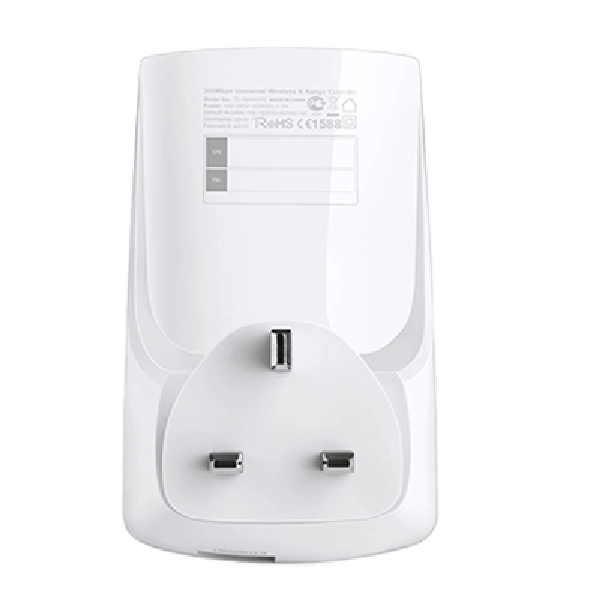

Plug Type EU, UK, US

Interface 1 * 10/100M Ethernet Port (RJ45)

Ports 1 x 10/100Mbps Ethernet Port (RJ45)

Button RE (Range Extender) Button, Reset Button

Input Power 100-240V~50/60Hz

Power Consumption About 3W

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H ) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)

Antenna 2 * internal

WIRELESS FEATURES

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency 2.4~2.4835GHz

Signal Rate 11n: Up to 300Mbps (dynamic)

11g: Up to 54Mbps (dynamic)

11b: Up to 11Mbps (dynamic)

Working Modes Range Extender/Access Point

Reception Sensitivity 270M: -68dBm@10% PER

130M: -68dBm@10% PER

108M: -68dBm@10% PER

54M: -68dBm@10% PER

11M: -85dBm@8% PER

6M: -88dBm@10% PER

1M: -90dBm@8% PER

Transmit Power <!important; 20 dBm (EIRP)

Wireless Modes Range Extender

Wireless Functions WMM (Wi-Fi Multimedia)

Wireless MAC Address Filtering

Wireless Statistic

Domain Login Function

Wireless Security 64/128/152-bit WEP

WPA-PSK / WPA2-PSK

Transmission Power <!important; 20 dBm (EIRP)

OTHERS

Certification CE, RoHS

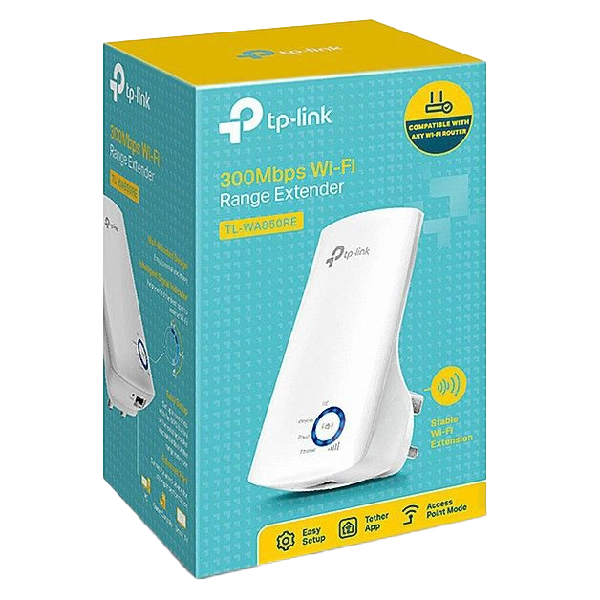

Package Contents 300Mbps Universal Wi-Fi Range Extender TL-WA850RE

RJ-45 Ethernet Cable

Resource CD

Quick Installation Guide

System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.

Environment Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
