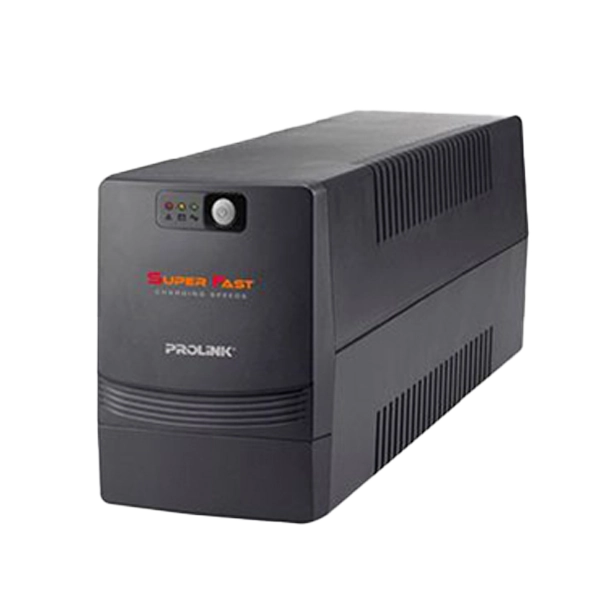

MODEL NO: PROLINK PRO1201SFC 1.2 KV UPS

Specifications:

Capacity

1200VA

Input Voltage Range

220 - 240V ± 5%

Frequency

50Hz/60Hz (Auto-sensing)

Phase

Single + GND

Output Voltage Range

230VAC +12% -14%

Battery Mode

230VAC +10% -10%

Frequency

50Hz ± 1% (Battery Mode)

Waveform

- Simulated Sine Wave (Battery Mode)

- Sine Wave (AC Mode)

Transfer Time

2ms typical

Battery Type

12V/8.2AH - 2pcs

Backup Time

8 - 30 minutes depending on load

Recharge Time

2 - 4 hours recover to 90% capacity

Protection / Monitoring Short Circuit Protection

Yes (Line Mode and Battery Mode)

Surge Protection

Yes

Alarm

Audible &!important; Visual

UPS Protection

Load auto sensing and abnormal protection

Overload Protection

- Line mode : 100 - 120% 5 mins change to fault mode >!important; 120% change to fault mode shutdown immediately

- Battery mode : 100 - 110% alarm &!important; shutdown in 10 secs >!important; 120% shutdown immediately

Intelligent Battery Management

Prevent overcharging of battery

Protect battery and prolong battery life

Interface Interface*

RJ11

AC fault, battery low, shutdown UPS

General Software

Support Windows® 2000/ 2003/ XP/ Vista/ 2008/ 7, Linux, Unix, and Mac

Noise Level

<!important; 40dB

Temperature

0°C - 40°C

Humidity

0 - 90%

Power Factor

Up to 0.7

Built in AVR

TRUE Full AVR (3 steps)

Physical Dimension (mm) D x W × H

320*130*182mm (product only)

390*192*275mm (with box)

Net Weight (kgs)

8.6KG (product only)

9KG(with box)

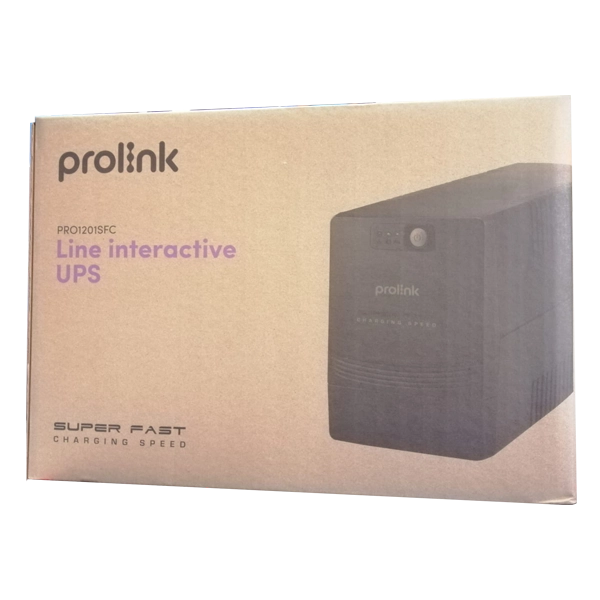

Package Content

1 x PROLiNK PRO1201SFC

1 x Quick Installation Guide (QIG)
