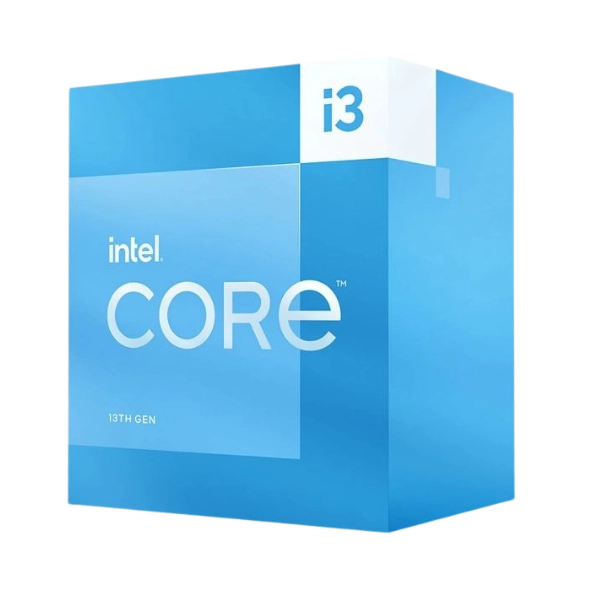

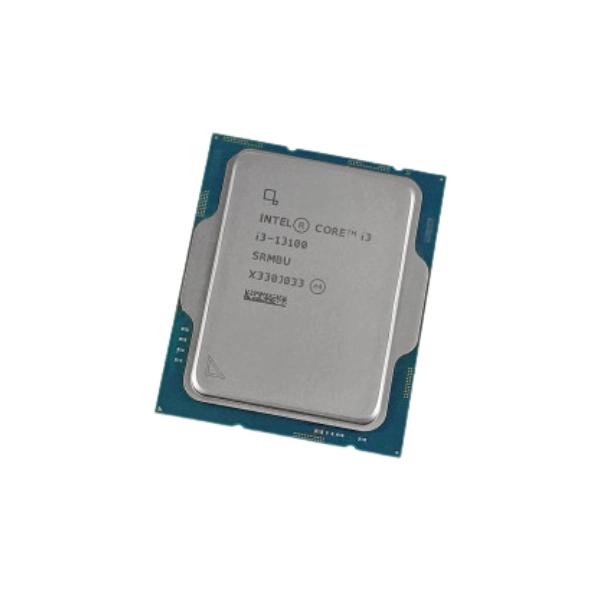

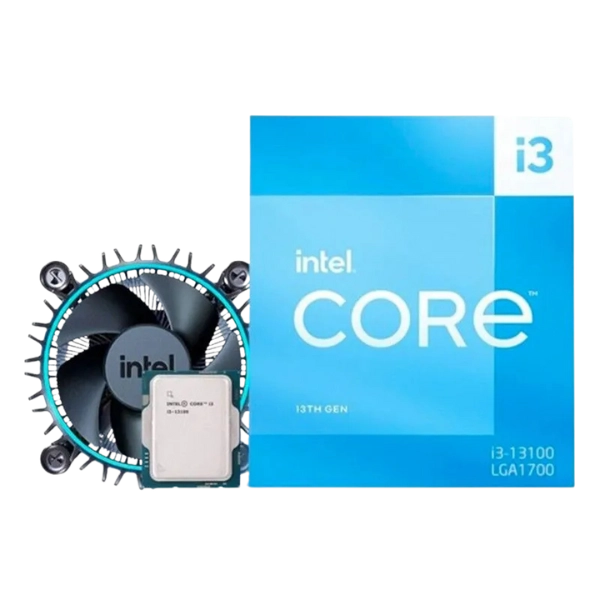

INTEL CORE I3 13100 5MB CACHE 8 THREADS 4 CORES UP TO 4.50 GHZ DESKTOP PROCESSOR

MODEL NO: INTEL CORE I3 13100 5MB CACHE 8 THREADS 4 CORES UP TO 4.50 GHZ DESKTOP PROCESSOR

CPU Specifications

Total Cores

4

# of Performance-cores

4

# of Efficient-cores

0

Total Threads

8

Max Turbo Frequency

4.50 GHz

Performance-core Max Turbo Frequency

4.50 GHz

Performance-core Base Frequency

3.40 GHz

Cache

12 MB Intel® Smart Cache

Total L2 Cache

5 MB

Processor Base Power

60 W

Maximum Turbo Power

110 W

Supplemental Information

Marketing Status

Launched

Launch Date

Q1'23

Embedded Options Available

Yes

Use Conditions

PC/Client/Tablet

Datasheet

View now

Memory Specifications

Max Memory Size (dependent on memory type)

192 GB

Memory Types

Up to DDR5 4800 MT/s

Up to DDR4 3200 MT/s

Max # of Memory Channels

2

Max Memory Bandwidth

76.8 GB/s

GPU Specifications

GPU Name‡

Intel® UHD Graphics 730

Graphics Base Frequency

300 MHz

Graphics Max Dynamic Frequency

1.5 GHz

Graphics Output

eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units

24

Max Resolution (HDMI)‡

4096 x 2160 @ 60Hz

Max Resolution (DP)‡

7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)‡

5120 x 3200 @ 120Hz

DirectX* Support

12

OpenGL* Support

4.5

OpenCL* Support

3.0

Multi-Format Codec Engines

1

Intel® Quick Sync Video

Yes

Intel® Clear Video HD Technology

Yes

# of Displays Supported ‡

4

Device ID

0x4692

Expansion Options

Direct Media Interface (DMI) Revision

4.0

Max # of DMI Lanes

8

Scalability

1S Only

PCI Express Revision

5.0 and 4.0

PCI Express Configurations ‡

Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes

20

Package Specifications

Sockets Supported

FCLGA1700

Max CPU Configuration

1

Thermal Solution Specification

PCG 2020C

TJUNCTION

100°C

Package Size

45.0 mm x 37.5 mm

Max Operating Temperature

100 °C

Advanced Technologies

Intel® Gaussian &!important; Neural Accelerator

3.0

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Yes

Intel® Speed Shift Technology

Yes

Intel® Turbo Boost Max Technology 3.0 ‡

No

Intel® Turbo Boost Technology ‡

2.0

Intel® Hyper-Threading Technology ‡

Yes

Intel® 64 ‡

Yes

Instruction Set

64-bit

Instruction Set Extensions

Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States

Yes

Enhanced Intel SpeedStep® Technology

Yes

Thermal Monitoring Technologies

Yes

Intel® Volume Management Device (VMD)

Yes

Security &!important; Reliability

Intel® Standard Manageability (ISM) ‡

Yes

Intel® Secure Key

Yes

Intel® Control-Flow Enforcement Technology

Yes

Intel® AES New Instructions

Yes

Intel® Secure Key

Yes

Intel® OS Guard

Yes

Execute Disable Bit ‡

Yes

Intel® Boot Guard

Yes

Mode-based Execute Control (MBEC)

Yes

Intel® Virtualization Technology (VT-x) ‡

Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡

Yes

Intel® VT-x with Extended Page Tables (EPT) ‡

Yes
