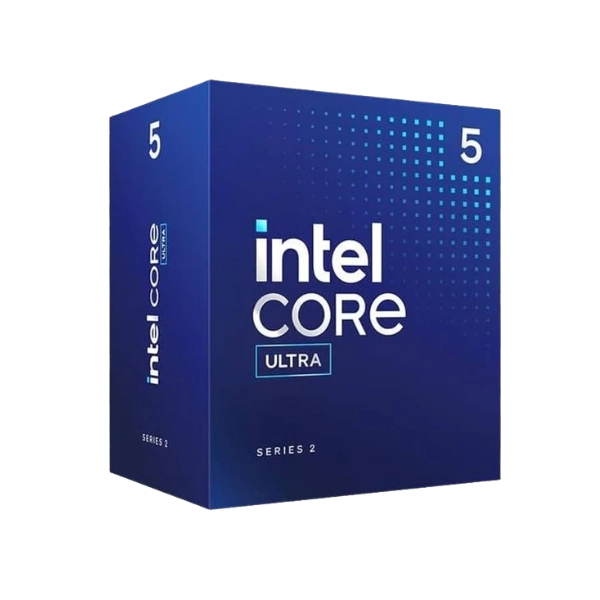

INTEL CORE ULTRA 5 225 PROCESSOR

MODEL NO: INTEL CORE ULTRA 5 225 PROCESSOR

Specifications:

CPU Specifications

Total Cores

10

# of Performance-cores

6

# of Efficient-cores

4

Total Threads

10

Max Turbo Frequency

4.9 GHz

Performance-core Max Turbo Frequency

4.9 GHz

Efficient-core Max Turbo Frequency

4.4 GHz

Performance-core Base Frequency

3.3 GHz

Efficient-core Base Frequency

2.7 GHz

Cache

20 MB Intel® Smart Cache

Total L2 Cache

22 MB

Processor Base Power

65 W

Maximum Turbo Power

121 W

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Yes

AI Software Frameworks Supported by CPU

OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

CPU Lithography

TSMC N3B

Supplemental Information

Marketing Status

Launched

Launch Date

Q1'25

Embedded Options Available

Yes

Use Conditions

PC/Client/Tablet

Datasheet

View now

Memory Specifications

Max Memory Size (dependent on memory type)

256 GB

Memory Types

Up to DDR5 6400 MT/s

Max # of Memory Channels

2

ECC Memory Supported ‡

No

GPU Specifications

GPU Name‡

Intel® Graphics

Graphics Base Frequency

300 MHz

Graphics Max Dynamic Frequency

1.8 GHz

GPU Peak TOPS (Int8)

4

Graphics Output

DP 2.1 UHBR20, HDMI 2.1 FRL, eDP1.4b

Xe-cores

2

Ray Tracing

Yes

Max Resolution (HDMI)‡

4096 x 2304 @ 60Hz (HDMI 2.1 TMDS)

7680 x 4320 @ 60Hz (HDMI 2.1 FRL)

Max Resolution (DP)‡

7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)‡

3840 x 2400 @ 120Hz

DirectX* Support

12

OpenGL* Support

4.5

OpenCL* Support

3

H.264 Hardware Encode/Decode

Yes

H.265 (HEVC) Hardware Encode/Decode

Yes

AV1 Encode/Decode

Yes

VP9 Bitstream &!important; Decoding

Yes

Intel® Quick Sync Video

Yes

# of Displays Supported ‡

4

Device ID

0x7D67

Intel® Deep Learning Boost (Intel® DL Boost) on GPU

Yes

AI Software Frameworks Supported by GPU

OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU

NPU Specifications

NPU Name‡

Intel® AI Boost

NPU Peak TOPS (Int8)

13

Sparsity Support

Yes

Windows Studio Effects Support

Yes

AI Software Frameworks Supported by NPU

OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

Direct Media Interface (DMI) Revision

4

Max # of DMI Lanes

8

Intel® Thunderbolt™ 4

Yes

Scalability

1S Only

PCI Express Revision

5.0 and 4.0

PCI Express Configurations ‡

Up to 1x16+2x4, 2x8+2x4,

1x8+4x4

Max # of PCI Express Lanes

24

Package Specifications

Sockets Supported

FCLGA1851

Thermal Solution Specification

PCG 2022C

Max Operating Temperature

105 °C

Package Size

45.0 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian &!important; Neural Accelerator

3.5

Intel® Thread Director

Yes

Intel® Speed Shift Technology

Yes

Intel® Turbo Boost Technology ‡

2.0

Intel® Hyper-Threading Technology ‡

No

Intel® 64 ‡

Yes

Instruction Set

64-bit

Instruction Set Extensions

Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States

Yes

Enhanced Intel SpeedStep® Technology

Yes

Thermal Monitoring Technologies

Yes

Intel® Volume Management Device (VMD)

Yes

Security &!important; Reliability

Intel® Threat Detection Technology (TDT)

Yes

Intel® Active Management Technology (AMT) ‡

No

Intel® Standard Manageability (ISM) ‡

Yes

Intel® Remote Platform Erase (RPE) ‡

No

Intel® One-Click Recovery ‡

No

Intel® Secure Key

Yes

Intel® Control-Flow Enforcement Technology

Yes

Intel® Total Memory Encryption - Multi Key

No

Intel® AES New Instructions

Yes

Intel® Trusted Execution Technology ‡

Yes

Execute Disable Bit ‡

Yes

Intel® OS Guard

Yes

Intel® Boot Guard

Yes

Mode-based Execute Control (MBEC)

Yes

Intel® Stable IT Platform Program (SIPP)

No

Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡

No

Intel® Virtualization Technology (VT-x) ‡

Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡

Yes

Intel® VT-x with Extended Page Tables (EPT) ‡

Yes
